Control Dampers

Direct airflow to where it's needed. Our control dampers are designed for efficient airflow. Available for on-off and modulated flow applications.

Products

AC517 / AC518

5.5" Deep Airfoil Blade Steel Control Damper

Featured

AC518

Maximum Velocity (FPM): 5000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 5000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

AC525-AC526

5" Deep Ultra Low Leak Airfoil Control Damper

Featured

AC525, AC526

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Insulation: Uninsulated
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

128

2" Deep Single Blade Aluminum Damper

128

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

A1770

4" Deep Single Thickness Blade Steel Control Damper

A1770

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

A182

4" Deep Single Thickness Blade Stainless Steel Control Damper

A182

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

A260DW

Dual Wall Insulated Round Single Blade Volume Control Damper

A260DW

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy, 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: True Round Single Thickness (UVU)
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)

A395

4" Deep Single Thickness Blade Low Leakage Control Damper

A395

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

A56

6.5" Deep Aluminum Airfoil Control Damper with Transition

A56

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Round
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)

A70

7.5" Deep Round Galvanized Steel Damper

A70

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

A70GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

A70GL

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

A70R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

A70R

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

A75

7.5" Deep Round Aluminum Damper

A75

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

A80

7.5" Deep Round Stainless Steel Damper

A80

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

A85

6.5" Deep Aluminum Pin-Lock Control Damper with Transition

A85

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock
Blade Action: Parallel / Opposed
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)

AC1

5.5" Deep Single Thickness Blade Control Damper (Parallel)

AC1

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

AC112

Round Single Blade Volume Control Damper

AC112

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

AC2

5.5" Deep Single Thickness Blade Control Damper (Opposed)

AC2

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

AC51

5" Deep Aluminum Airfoil Blade Damper (Parallel)

AC51

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

AC515

5.5" Deep Airfoil Blade Steel Control Damper (Parallel)

AC515

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

AC516

5.5" Deep Airfoil Blade Steel Control Damper (Opposed)

AC516

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

AC52

5" Deep Aluminum Airfoil Blade Damper (Opposed)

AC52

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

AC53

5" Deep Parallel Single Thickness Blade Pin-Lock Control Damper

AC53

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)

AC530

Round Single Blade Control Damper with Seals

AC530

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .013 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .013 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

AC54

5" Deep Opposed Single Thickness Blade Pin-Lock Control Damper

AC54

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)

AID200

Parallel Double Thickness Insulated Blade Control Damper

AID400

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Insulated Airfoil
Blade Action: Parallel
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

TB58

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

TB58

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

TB584

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

TB584

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil

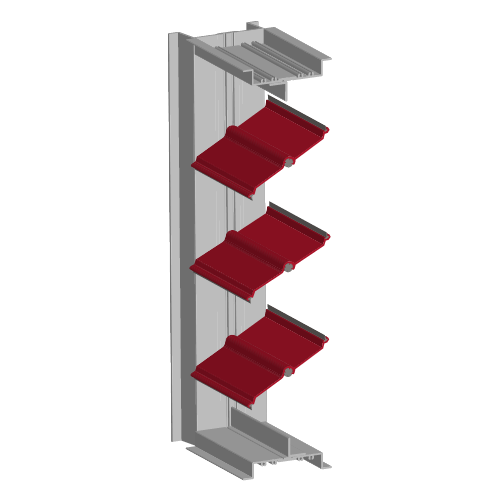

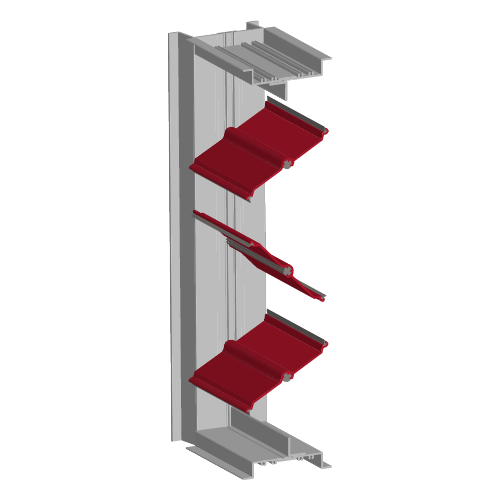

Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

TB584I

5" Deep Ultra Low Leak Insulated Control Damper

TB584I

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

TB58I

5" Deep Ultra Low Leak 6" Airfoil Control Damper

TB58I

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

TB59

5" Deep Ultra Low Leak Thermal Break Airfoil Control Damper

TB59

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Action: Parallel / Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -70 °F to 200 °F

TB594

5" Deep Ultra Low Leak Thermal Break 4" Airfoil Blade Control Damper

TB594

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Action: Parallel / Opposed
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -70 °F to 200 °F
