Blade Type - Air Balance

Straight Blade (J-Blade)

A louver blade designed for airflow. Straight blades have minimal features for capturing water but make up for it with a flat profile. These blades minimize pressure drop during intake. If airflow efficiency is your top priority, then look no further than the straight blade.

Straight blades are available for stationary louvers and combination adjustable louvers, including drainable and non-drainable models. They are also available on our thin line louvers and grilles.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products

A455IE

4" Deep Automatic Combination Louver - Intake or Discharge

A455IE

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

GS1

Modular Extruded Aluminum Grille Screen

GS1

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

GS2

Horizontal Angular Blade Extruded Aluminum Grille Screen

GS2

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

GS2C

Horizontal Angular Blade Extruded Aluminum Continuous Line Grille Screen

GS2C

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

GS3C

Solar Angular Continuous Line Extruded Aluminum Grille Screen

GS2C

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

A6DHP

6" Deep Extruded Aluminum Drainable Blade High Performance Louver

A6DHP

Free Area %: 63%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)(FPM)

A6SHP

6" Deep Extruded Aluminum Non-Drainable Blade High Performance Louver

A6SHP

Free Area %: 61%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)(FPM)

A11F

45° Stationary Blade Flanged Frame Door Louver

A11F

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

A320

6” Fixed Deep Drainable Blade Hurricane Louver (Miami-Dade Certified)

A320

Free Area %: 58%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

A320C

6" Deep Adjustable Blade Hurricane Louver (Miami-Dade Certified)

A320C

Free Area %: 51%
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

A455

4" Deep 45° Straight Blade Extruded Aluminum Louver

A455

Free Area %: 57%
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)(FPM)

A430

4" Deep 37° Extruded Aluminum Fixed Straight Blade Louver

A430

Free Area %: 57%
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)(FPM)

A435

4" Deep 37° Extruded Aluminum Drainable Blade Louver

A435

Free Area %: 57%
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)(FPM)

A445

4" Deep 45° Drain Blade Extruded Aluminum Louver

A445

Free Area %: 51%
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)(FPM)

A454C

4" Deep Drainable Combination Adjustable and Stationary Louver

A454C

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)(FPM)

A454CM

4" Deep Drainable Combination Adjustable and Stationary Louver With Concealed Actuator

A454CM

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

A677E

6" Deep 35° Combination Stationary and Adjustable Exhaust Louver

A677E

Free Area %: 52%

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

A665C

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver

A665C

Free Area %: 52%
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)(FPM)

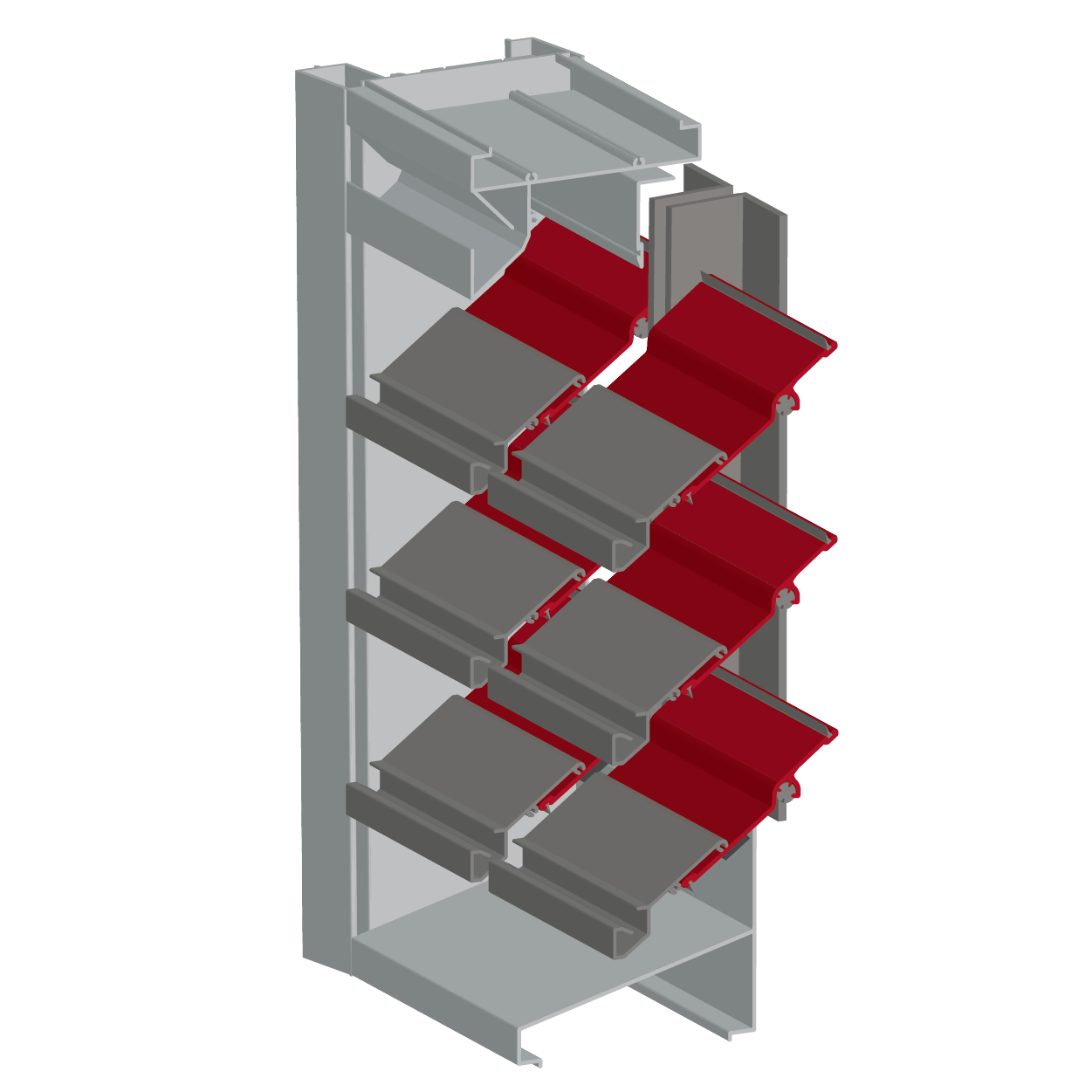

A680DC

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver with Concealed Mullion

A680DC

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

A665CM

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver w/ Concealed Actuator

A665CM

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Water Penetration (fpm): 1029 (fpm)(FPM)

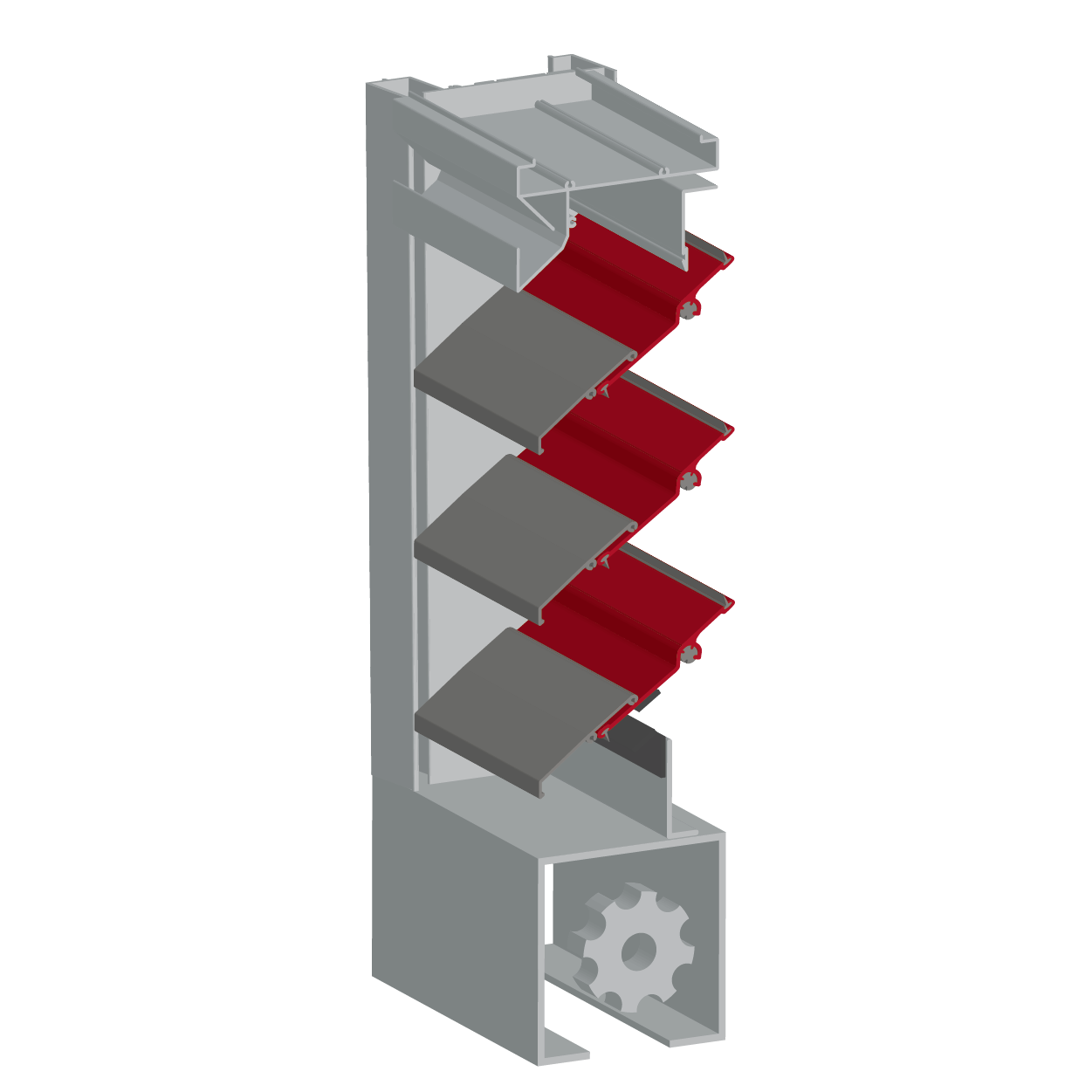

A681C

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver

A681C

Free Area %: 52%
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)(FPM)

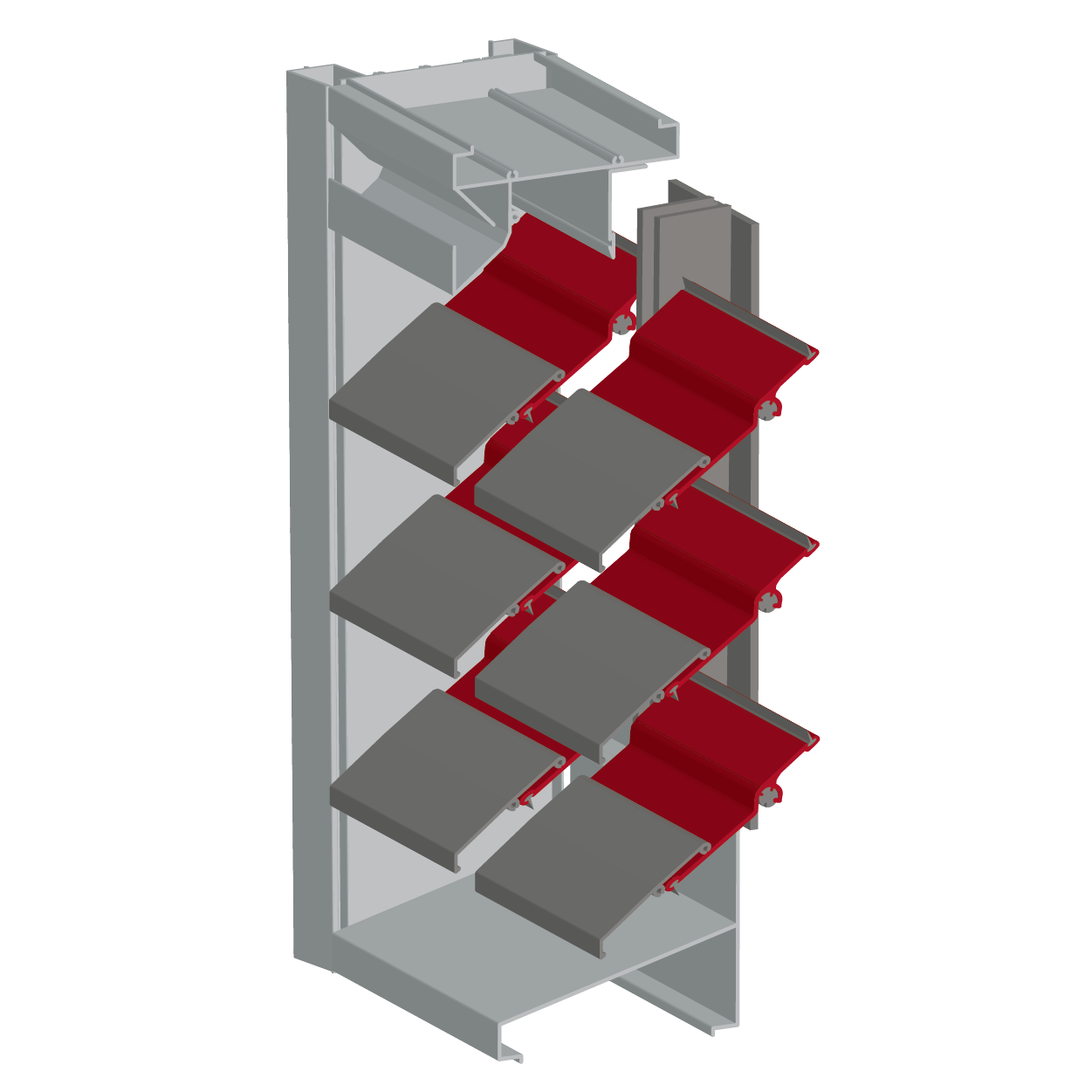

A681CM

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Actuator

A681CM

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

AATL30

0.465" Deep 30° Non-Drainable Blade Thin Line Extruded Aluminum Louver

AATL30

Free Area %: 72.6%

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

AATL42

0.465" Deep 42° Non-Drainable Blade Thin Line Extruded Aluminum Louver

AATL42

Free Area %: 61.11%

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

S245

2" Deep 45° Stationary Non-Drainable Blade Steel Louver

S245

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

S645A

6" Deep Drainable Blade Adjustable Steel Louver

S645A

Free Area %: 53.13%
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)(FPM)

S735C

7" Drainable Blade Combination Stationary and Adjustable Steel Louver

S735C

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

S400

4" Deep 45° Stationary Non-Drainable Blade Steel Louver

S400

Free Area %: 51%
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)(FPM)

S430

4" Deep 30° Stationary Non-Drainable Blade Steel Louver

S430

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

S445A

4" Deep 45° Blade Adjustable Steel Louver

S445A

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)(FPM)

S645

6" Deep 45° Stationary Drainable Blade Steel Louver

S645

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)(FPM)

S635

6" Deep 35° Stationary Drainable Blade Steel Louver

S635

Free Area %: 55%
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)(FPM)

S630

6" Deep 30° Stationary Non-Drainable Blade Steel Louver

S630

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

AAC73A

7" Deep Insulated Blade Combination Adjustable and Stationary Acoustical Steel Louver

AAC73A

Free Area %: 45.4%
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .17 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)(FPM)

S655

6" Deep 45° Stationary Non-Drainable Blade Steel Louver

S655

Free Area %: 46.3%

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

P465M

4" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

P465M

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

P655M

6" Deep Extruded Aluminum Non-Drainable Blade Penthouse with Welded Miter Corners

P655M

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

P655P

6" Deep Extruded Aluminum Straight Blade Penthouse with Post Corners

P655P

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

P435P

4" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

P435P

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

P635P

6" Deep Extruded Aluminum Drainable Blade Penthouse with Post Corners

P635P

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)

A681CC

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver w/ Concealed Mullions

A681CC

Material Options: Extruded Aluminum
Blade Type: Straight Blade (J-Blade)

AFS150

1.5" Deep 45 Degree Stationary Formed Steel Louver

AFS150

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)

S455A

4" Deep Formed Steel Adjustable Louver

S455A

Free Area %: 48.68%
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)(FPM)

S445

4" Deep 45 Degree Stationary Drain Blade Steel Louver

S445

Free Area %: 50%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Straight Blade (J-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)(FPM)

BV

Brick Vents with Standard Frames

BV

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Straight Blade (J-Blade)
