Blade Type - Air Balance

Airfoil Blade

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products 51

A56

6.5" Deep Aluminum Airfoil Control Damper with Transition

A56

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Round
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)

More Info

AC51

5" Deep Aluminum Airfoil Blade Damper (Parallel)

AC51

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

AC52

5" Deep Aluminum Airfoil Blade Damper (Opposed)

AC52

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

ID30

4" Deep Light Industrial Airfoil Control Damper

ID30

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .035 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .035 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

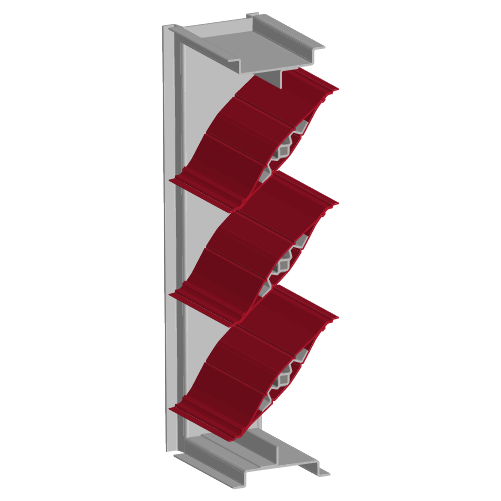

AC515

5.5" Deep Airfoil Blade Steel Control Damper (Parallel)

AC515

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

More Info

AC516

5.5" Deep Airfoil Blade Steel Control Damper (Opposed)

AC516

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

More Info

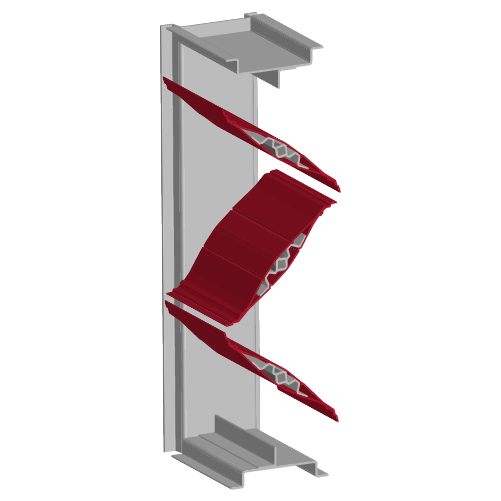

AC517 / AC518

5.5" Deep Airfoil Blade Steel Control Damper

Featured

AC518

Maximum Velocity (FPM): 5000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 5000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

More Info

ID50

10" Deep Industrial Formed Steel Airfoil Control Damper

ID50

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 450 °F

More Info

ID51

10" Deep Industrial Formed Steel Airfoil Control Damper

ID51

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 20 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 450 °F

More Info

ID54

10" Deep Industrial Formed Steel Airfoil "Hi-Temp" Control Damper

ID54

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 15 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: Hot Rolled Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 800 °F

More Info

ID55

10" Deep Industrial Formed Steel Airfoil Control Damper (Clean Air)

ID55

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 400 °F

More Info

AC525-AC526

5" Deep Ultra Low Leak Airfoil Control Damper

Featured

AC525, AC526

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Insulation: Uninsulated
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

More Info

A635AF

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver

A635AF

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 1026 fpm
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Pressure Drop: .14 in. w.g. @ 1026 fpm
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

A545INS

10" Deep Industrial Insulated Airfoil Control Damper (Clean Air)

A545INS

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 200 °F

More Info

SA2M

Class II Airfoil Blade Modulating Smoke Damper

SA2HM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

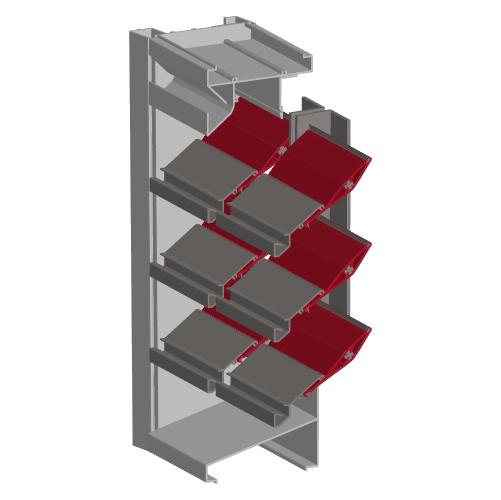

A680DAFC

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver w/ Concealed Actuator

A680DAFC

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

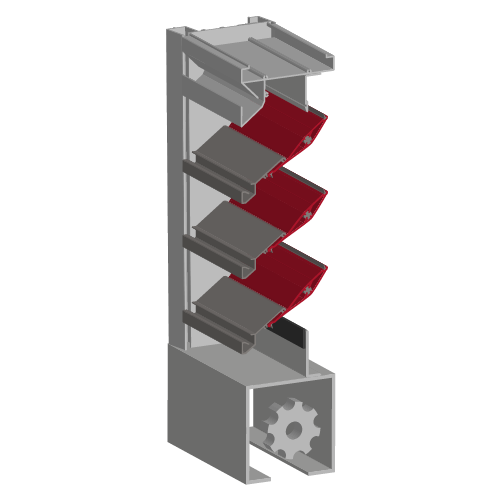

A635AFM

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver w/ Concealed Mullions

A635AFM

Free Area %: 52%
Water Penetration (fpm): 1029 (fpm)

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Water Penetration (fpm): 1029 (fpm)(FPM)

More Info

A7004

4" Deep Adjustable Louver With Insulated Airfoil Blades

A7004

Free Area %: 38%

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade

More Info

FA1 EP Series

Class I, 1.5 Hour Airfoil Blade Fire-Smoke Damper (3000 FPM, 4 in. w.g Max)

FA1H25034, FA1H35034, FA1V25034, FA1V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA1 HP Series

Class I, 1.5 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 4 in. w.g. Max)

FA1H25044, FA1H35044, FA1V25044, FA1V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA1 HE Series

Class I, 1.5 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 6 in. w.g. Max)

FA1H25046, FA1H35046, FA1V25046, FA1V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA1G

Class I, 1.5 Hour Front Access Grille Airfoil Blade Fire-Smoke Damper (1.5-inch setback)

FA1HE250, FA1HE350, FA1VG250, FA1VG350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA1G

Class I, 1.5 Hour Front Access Grille Airfoil Blade Fire-Smoke Damper (3.5-inch setback)

FA1HD250, FA1HD350, FA1VF250, FA1VF350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA1

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

FA1H250, FA1H350, FA1V250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2G

Class II, 1.5 Hour Front Access Grille Airfoil Blade Fire-Smoke Damper (1.5-inch setback)

FA2HE250, FA2HE350, FA2VG250, FA2VG350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2G

Class II, 1.5 Hour Front Access Grille Airfoil Blade Fire-Smoke Damper (3.5-inch setback)

FA2HD250, FA2HD350, FA2VF250, FA2VF350

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2 HE Series

Class II, 1.5 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 6 in. w.g. Max)

FA2H25046, FA2H35046, FA2V25046, FA2V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2 HP Series

Class II, 1.5 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 4 in. w.g. Max)

FA2H25044, FA2H35044, FA2V25044, FA2V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2 EP Series

Class II, 1.5 Hour Airfoil Blade Fire-Smoke Damper (3000 FPM, 4 in. w.g. Max)

FA2H25034, FA2H35034, FA2V25034, FA2V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

FA2

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

FA2H250, FA2H350, FA2V250, FA2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA1

Class I, 3 Hour Airfoil Blade Combination Fire-Smoke Damper

TA1H250, TA1H350, TA1V250, TA1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA1 EP Series

Class I, 3 Hour Airfoil Blade Fire-Smoke Damper (3000 FPM, 4 in. w.g. Max)

TA1H25034, TA1H35034, TA1V25034, TA1V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA1 HP Series

Class I, 3 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 4 in. w.g. Max)

TA1H25044, TA1H35044, TA1V25044, TA1V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA1 HE Series

Class I, 3 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 6 in. w.g. Max)

TA1H25046, TA1H35046, TA1V25046, TA1V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA2

Class II, 3 Hour Airfoil Blade Combination Fire-Smoke Damper

TA2H250, TA2H350, TA2V250, TA2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA2 EP Series

Class II, 3 Hour Airfoil Blade Fire-Smoke Damper (3000 FPM, 4 in. w.g. Max)

TA2H25034, TA2H35034, TA2V25034, TA2V35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA2 HP Series

Class II, 3 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 4 in. w.g. Max)

TA2H25044, TA2H35044, TA2V25044, TA2V35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA2 HE Series

Class II, 3 Hour Airfoil Blade Fire-Smoke Damper (4000 FPM, 6 in. w.g. Max)

TA2H25046, TA2H35046, TA2V25046, TA2V35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F to 350 °F

More Info

TA2M

Class II, 3 Hour Modulating Airfoil Blade Combination Fire-Smoke Damper

TA2HM250, TA2VM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
Temperature Rating (°F): 250 °F

More Info

FA2M

Class II, 1.5 Hour Modulating Airfoil Blade Combination Fire-Smoke Damper

FA2HM250, FA2VM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.
Temperature Rating (°F): 250 °F

More Info

SA1

Class I Airfoil Blade Smoke Damper

SA1H250, SA1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA1 EP Series

Class I Airfoil Blade Smoke Damper (EP Series)

SA1H25034, SA1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA1 HP Series

Class I Airfoil Blade Smoke Damper (HP Series)

SA1H25044, SA1H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA1 HE Series

Class I Airfoil Blade Smoke Damper (HE Series)

SA1H25046, SA1H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA2

Class II Airfoil Blade Smoke Damper

SA2H250, SA2H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA2 EP Series

Class II Airfoil Blade Smoke Damper (EP Series)

SA2H25034, SA2H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA2 HP Series

Class II Airfoil Blade Smoke Damper (HP Series)

SA2H25044, SA2H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

SA2 HE Series

Class II Airfoil Blade Smoke Damper (HE Series)

SA2H25046, SA2H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

MA39

3 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA39H, MA39V, MA39CH, MA39CV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

More Info

MA39 HP Series

3 Hour Rated Non-Motorized Airfoil Dynamic Fire Damper (4000 FPM, 4 in. w.g. Max)

MA39H4, MA39V4, MA39CH4, MA39CV4

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

More Info

MA19

1.5 Hour Rated Non-Motorized Airfoil Blade Dynamic Fire Damper

MA19H, MA19V, MA19CH, MA19CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

More Info
