Blade Type - Air Balance

Baffle Blade (K-Blade)

Built-in protection from rainfall. Baffle blades are designed with a blade catch at the center of the blade, for capturing rain as it enters the louver. Drainable models quickly drain water and prevent water infiltration through the louver.

Baffle blades are available for stationary louvers, severe weather louvers, and combination adjustable louvers.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products

A4DHP

4" Deep Horizontal Extruded Aluminum Drainable Baffle Blade Louver

A4DHP

Free Area %: 61%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 909 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Blade Action: Parallel
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 909 (fpm)(FPM)

A4SHP

4" Deep Horizontal Extruded Aluminum Baffle Blade Louver

A4SHP

Free Area %: 60%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)(FPM)

A150

1.5" Deep, 30° Baffle Blade Extruded Aluminum Louver

A150

Free Area %: 46%
Pressure Drop: .034 in. w.g. @ 495 fpm
Water Penetration (fpm): 459 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .034 in. w.g. @ 495 fpm
Water Penetration (fpm): 459 (fpm)(FPM)

A245

2" Deep, 45° Baffle Blade Extruded Aluminum Curtain Wall Louver

A245

Free Area %: 45%
Pressure Drop: .09 in. w.g. @ 750 fpm
Water Penetration (fpm): 748 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .09 in. w.g. @ 750 fpm
Water Penetration (fpm): 748 (fpm)(FPM)

A258

2" Deep, 45° Extruded Aluminum Drainable Blade Louver

A258

Free Area %: 45%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 901 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 901 (fpm)(FPM)

A465

4" Deep 45° Extruded Aluminum Baffle Blade Louver

A465

Free Area %: 56%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 932 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 932 (fpm)(FPM)

A424

4" Deep 45° Dual Drain Blade Extruded Aluminum Louver

A424

Free Area %: 52%
Pressure Drop: .17 in. w.g. @ 1100 fpm
Water Penetration (fpm): 942 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .17 in. w.g. @ 1100 fpm
Water Penetration (fpm): 942 (fpm)(FPM)

A440

4" Deep 30° Baffle Blade Louver

Free Area %: 47.9%
Pressure Drop: .08 in. w.g. @ 780 fpm
Water Penetration (fpm): 763 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .08 in. w.g. @ 780 fpm
Water Penetration (fpm): 763 (fpm)(FPM)

A445A

4" Deep Drainable Blade Adjustable Louver

A445A

Free Area %: 44%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 974 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 974 (fpm)(FPM)

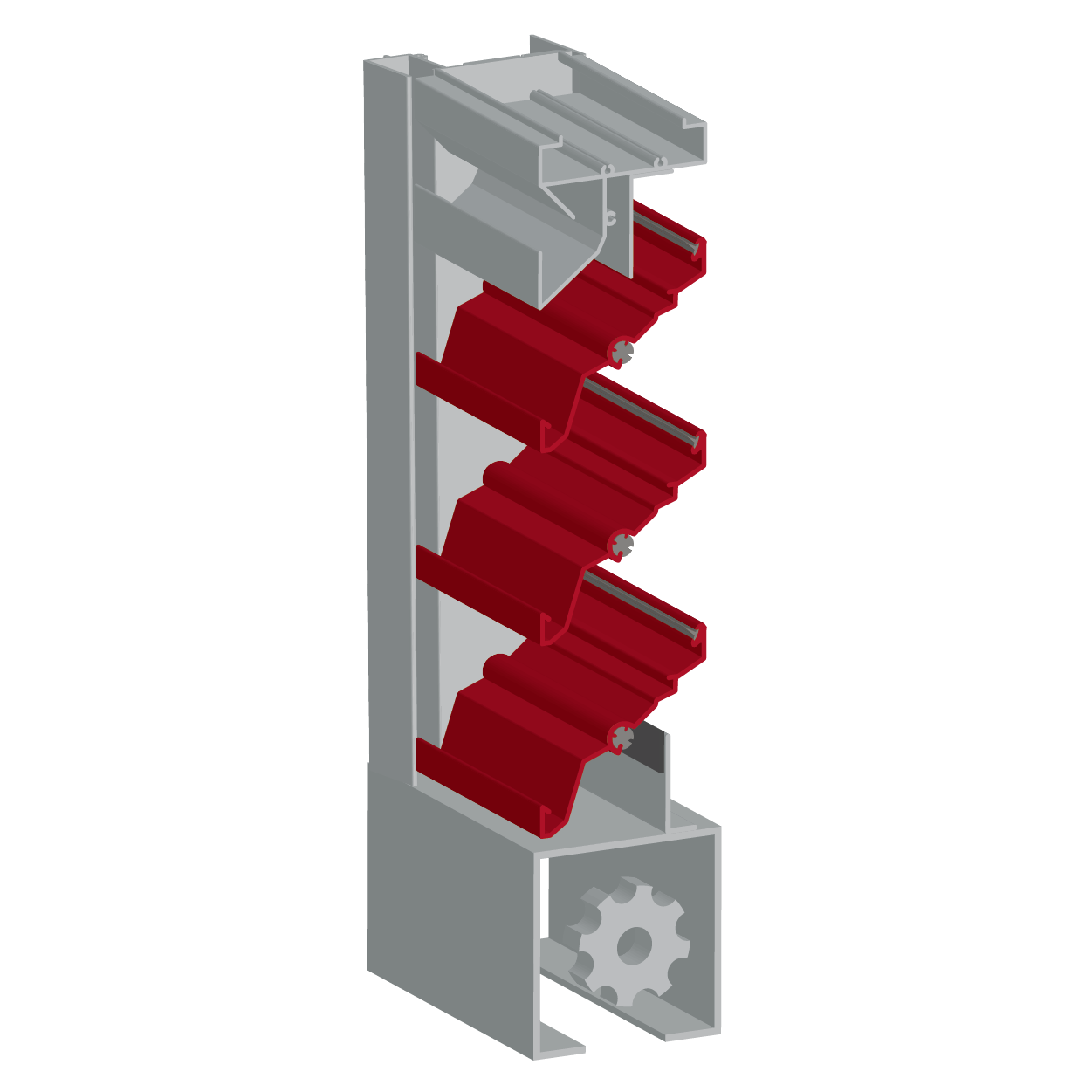

A445AM

4" Deep Drainable Blade Adjustable Louver With Concealed Actuator

A445AM

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

A655

6" Deep 45° Non-Drainable Blade Extruded Aluminum Louver

A655

Free Area %: 55%
Pressure Drop: .16 in. w.g. @ 1100 fpm
Water Penetration (fpm): 1093 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .16 in. w.g. @ 1100 fpm
Water Penetration (fpm): 1093 (fpm)(FPM)

A635

6" Deep Extruded Aluminum 35°/42° Drainable Blade Louver

A635

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1250 (fpm)(FPM) Or More

A634

6" Deep 42° Dual Drainable Blade Louver

A634

Free Area %: 56%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 993 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 993 (fpm)(FPM)

A655A

6" Deep Non-Drainable Blade Adjustable Louver

A655A

Free Area %: 57%
Pressure Drop: .15 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .15 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)(FPM)

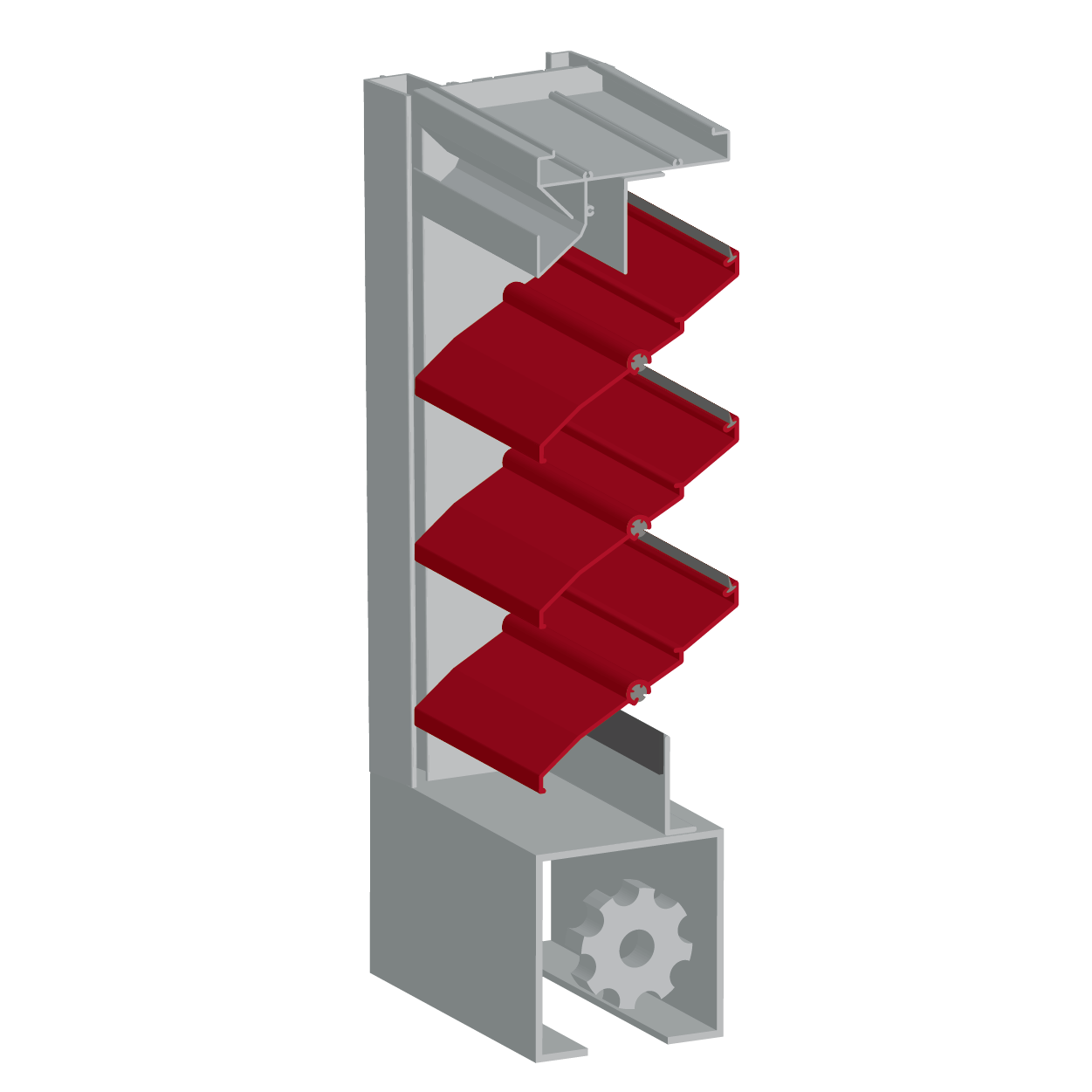

A655AM

6" Deep Non-Drainable Blade Adjustable Louver with Concealed Actuator

A655AM

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

A635A

6" Deep Drainable Blade Adjustable Louver

A635A

Free Area %: 54%
Pressure Drop: .145 in. w.g. @ 1000 fpm
Water Penetration (fpm): 880 (fpm)

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .145 in. w.g. @ 1000 fpm
Water Penetration (fpm): 880 (fpm)(FPM)

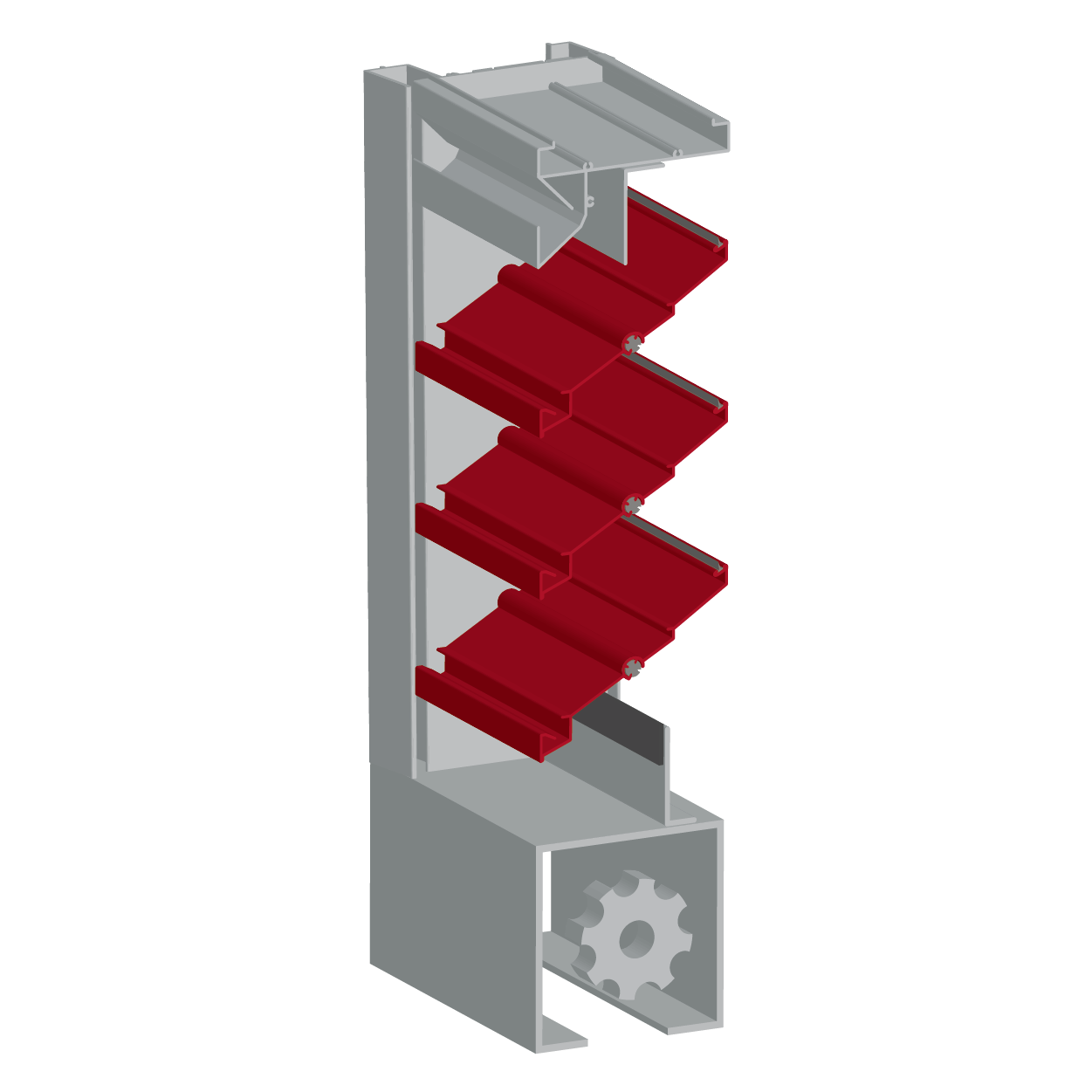

A635AM

6" Deep Drainable Blade Adjustable Louver with Concealed Actuator

A635AM

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)

S405

4" Deep 45° Stationary Baffle Blade Steel Louver

S405

Free Area %: 51.6%
Pressure Drop: .07 in. w.g. @ 650 fpm
Water Penetration (fpm): 643 (fpm)

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .07 in. w.g. @ 650 fpm
Water Penetration (fpm): 643 (fpm)(FPM)

S605

6" Deep 45° Stationary Baffle Blade Steel Louver

S605

Free Area %: 45.81%

Material Options: 304 Stainless Steel, 316 Stainless Steel, Galvanized Steel, or Galvaneal (When Finish / Field Painting Is Required)
Blade Type: Baffle Blade (K-Blade)

A650

6" Deep Continuous Line Extruded Aluminum Drainable Blade Louver with Recessed Mullions

Free Area %: 53%
Pressure Drop: .1 in. w.g. @ 800 fpm
Water Penetration (fpm): 1100 (fpm)

Currently Unavaliable

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .1 in. w.g. @ 800 fpm
Water Penetration (fpm): 1100 (fpm)(FPM)

ASEP45S

Smoke Evacuation Extruded Aluminum Penthouse

ASEP45S32, ASEP45S38, ASEP45S44, ASEP45S32, ASEP45S38, ASEP45S44

Free Area %: 30.69%
Pressure Drop: .125 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .125 in. w.g. @ 1000 fpm

ASVP45C

Stack Ventilation Extruded Aluminum Penthouse

ASVP45C32, ASVP45C38, ASVP45C44

Free Area %: 40.87%
Pressure Drop: .125 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum, or Extruded Aluminum 6063 Alloy
Blade Type: Baffle Blade (K-Blade)
Pressure Drop: .125 in. w.g. @ 1000 fpm
