Blade Type - Air Balance

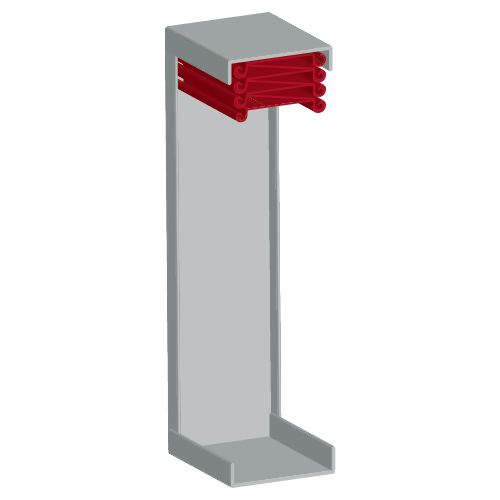

Curtain Blade

Fast-acting design for fire barriers. Curtain blades consist of several slats linked together to form a fire-resistant curtain. These blades drop over the damper opening, slowing the spread of flames through fire barrier penetrations. Available for static or dynamic closure.

Curtain blades are available for UL-rated fire dampers.

Looking for something more

Specific?

Try our product filtering tool here!

Filter Products

119F

1.5 Hour Rated Curtain Blade Thin Line Static Fire Damper

119FV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Style: A-Style

D19F

1.5 Hour Rated Dynamic Curtain Blade Thin Line Fire Damper

D19FV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

119

1.5 Hour Rated Curtain Blade Static Fire Damper

119AH, 119AV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 1.5 hrs.

119X

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

119XAH, 119XAV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 1.5 hrs.

319

3 Hour Rated Curtain Blade Static Fire Damper

319AH, 319AV, 319BH, 319BV, 319CH, 319CV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 3 hrs.

319X

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

319XAH, 319XAV, 319XBH, 319XBV, 319XCH, 319XCV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Fire Resistance Rating (hrs): 3 hrs.

D19

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D19AH, D19AV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D19X

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D19XAH, D19XAV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D39

3 Hour Rated Curtain Blade Dynamic Fire Damper

D39AH, D39AV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D39X

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D39XAH, D39XAV, D39XBH, D39XBV, D39XCH, D39XCV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: A-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D19B

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D19BH, D19BV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D19C

1.5 Hour Rated Curtain Blade Dynamic Fire Damper

D19CH, D19CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D39B

3 Hour Rated Curtain Blade Dynamic Fire Damper

D39BH, D39BV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D39C

3 Hour Rated Curtain Blade Dynamic Fire Damper

D39CH, D39CV

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 4000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

119B

1.5 Hour Rated Curtain Blade Static Fire Damper (B-Transition)

119BH, 119BV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 1.5 hrs.

119XB

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

119XBH, 119XBV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 1.5 hrs.

119XC

1.5 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

119XCH, 119XCV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 1.5 hrs.

319B

3 Hour Rated Curtain Blade Static Fire Damper

319BH, 319BV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 3 hrs.

319C

3 Hour Rated Curtain Blade Static Fire Damper

319CH, 319CV

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 3 hrs.

319XB

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Fire Resistance Rating (hrs): 3 hrs.

319XC

3 Hour Rated Curtain Blade Static Fire Damper w/ Integrated Sleeve

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Fire Resistance Rating (hrs): 3 hrs.

D19XB

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D19XBH, D19XBV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D19XC

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D19XCH, D19XCV

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 1.5 hrs.

D39XB

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: B-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.

D39XC

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Curtain Blade
Frame Shape: Rectangular
Frame Style: C-Style
Maximum Velocity (FPM): 2000 fpm (FPM)
Fire Resistance Rating (hrs): 3 hrs.
