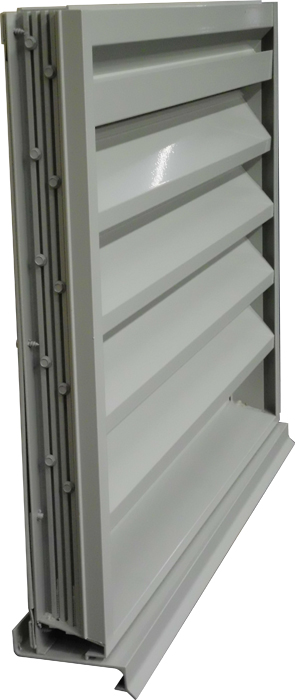

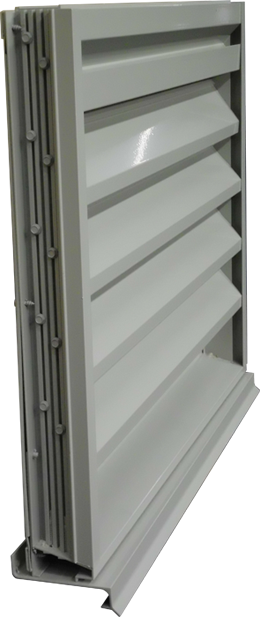

Model: | A245 |
Filter: | A245 |
Minimum Size: | 12" x 12" |
Maximum Size: | 60" x 96" |
Frame Depth: | 2" Deep |
Frame Material: | .063" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Material: | .063" Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Orientation: | Horizontal |
Blade Type: | Baffle |
Blade Angle: | 45° |
Continuous Line: | No |
Face: | Full Sill with Blades and Head Contained in Jambs |
Screen Options: | Standard Bird Screen: Standard Bird Screen: ½" Flattened Aluminum, .051" Thick Variety of Bird and Insect Screen Options |
Free Area: | 45% (7.23 ft2 for 48" x 48") |
Water Penetration: | 700 fpm |
Pressure Drop: | .085" in. w.g. at 748 fpm and 5408 scfm |
AMCA: | Certified for Air Performance and Water Penetration |
