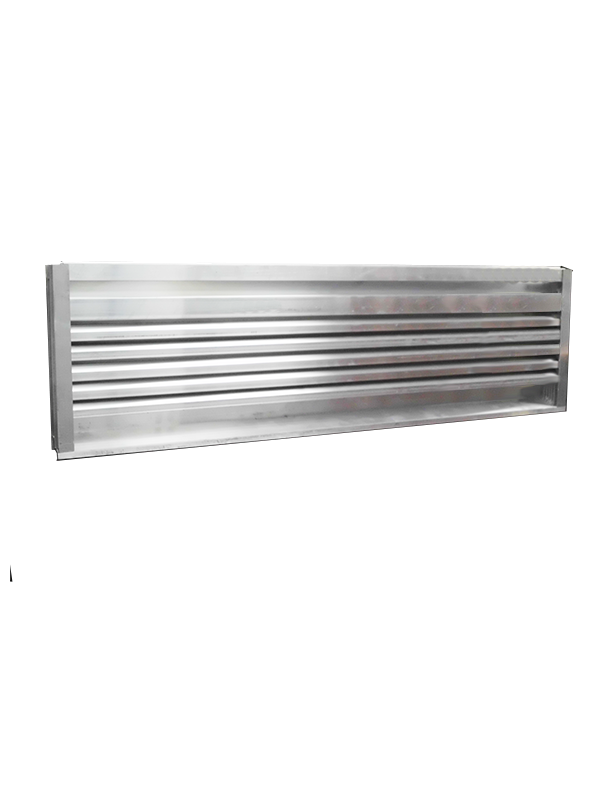

| Model: | A258 |
| Filter: | A258 |
| Minimum Size: | 12" x 12" |
| Maximum Size: | 60" x 96" |
| Frame Depth: | 2" Deep |
| Frame Material: | .063" Thick
Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Material: | .063" Thick
Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Orientation: | Horizontal |
| Blade Type: | Drainable |
| Blade Angle: | 45° |
| Continuous Line: | No |
| Face: | Full Sill with Blades and Head Contained in Jambs |
| Screen Options: | Standard Bird Screen: Standard Bird Screen: ½" Flattened Aluminum, .051" Thick
Variety of Bird and Insect Screen Options |
| Free Area: | 45% (7.23 ft2 for 48" x 48") |
| Water Penetration: | 800 fpm |
| Pressure Drop: | .12" in. w.g. at 901 fpm and 6514 scfm |
| AMCA: | Certified for Air Performance and Water Penetration |
