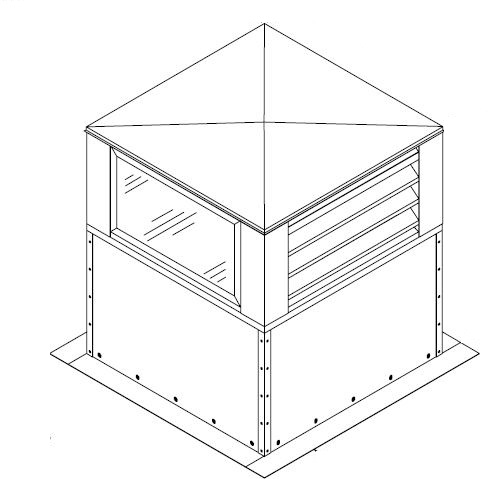

| Model: | ASEP45S |
| Filter: | ASEP45S32,ASEP45S38,ASEP45S44 |
| Size: | 38" X 38" X 18"
Sits on a Curb 12" to 36" High |
| Material: | .080" Thick Extruded Aluminum 6063-T52/T6 Alloy |
| Corner: | Post .080" Thick Formed Aluminum |
| Roof: | Removable .060" Thick Aluminum |
| Roof Insulation: | ½" Thick Rigid Insulation on Underside of Roof |
| Roof Opening: | 28" X 28" Minimum to 38" X 38" Maximum |
| Curb: | 12 ga. Galvanneal, Galvanized Steel or ⅛ " Thick Aluminum |
| Louver: | Model A465
30" X 18" Qty of 3 Required
Free Area of 4.905 ft2 Total |
| Smoke Damper: | Model S1H Class 1 250° 26" X 26"
Internally Mounted 120V Electric Actuator
Power Close Spring Open (Fail Open) with Open/Closed Indicator |
| Glass: | ⅛ " Annealed Glass |
| Screen: | .051" Flattened Bird Screen
Variety of Bird and Insect Screen Options |
| Finish: | Mill
Variety of Baked Enamel, Kynar and Anodize Options |
