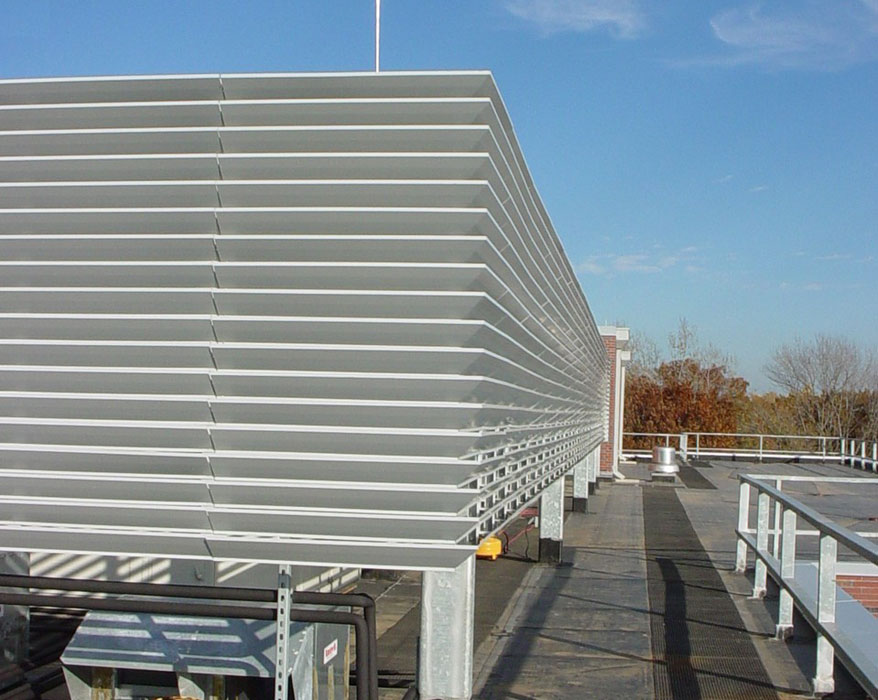

Equipment Screen With 4" Horizontal Extruded Aluminum Blades

Model:	AIS4
Filter:	AIS4
Minimum Panel Size:	12" x 12"
Maximum Panel Size:	120" x 72" up to 60 ft²
Depth:	4" Deep
Frame Material:	.081" Extruded Aluminum 6063-T52/T6 Alloy
Blade Material:	.081" or .125" Thick Extruded Aluminum 6063-T52/T6 Alloy
Blade Angle:	45°
Blade Orientation:	Horizontal
Blade Type:	Inverted
Standard Windload:	20 psf (~90 mph) Supports vary as required per wind load. Consult the factory.
Continuous Line:	Yes
Finish:	Mill
