Page 3 of 10 (318 Results, 239 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

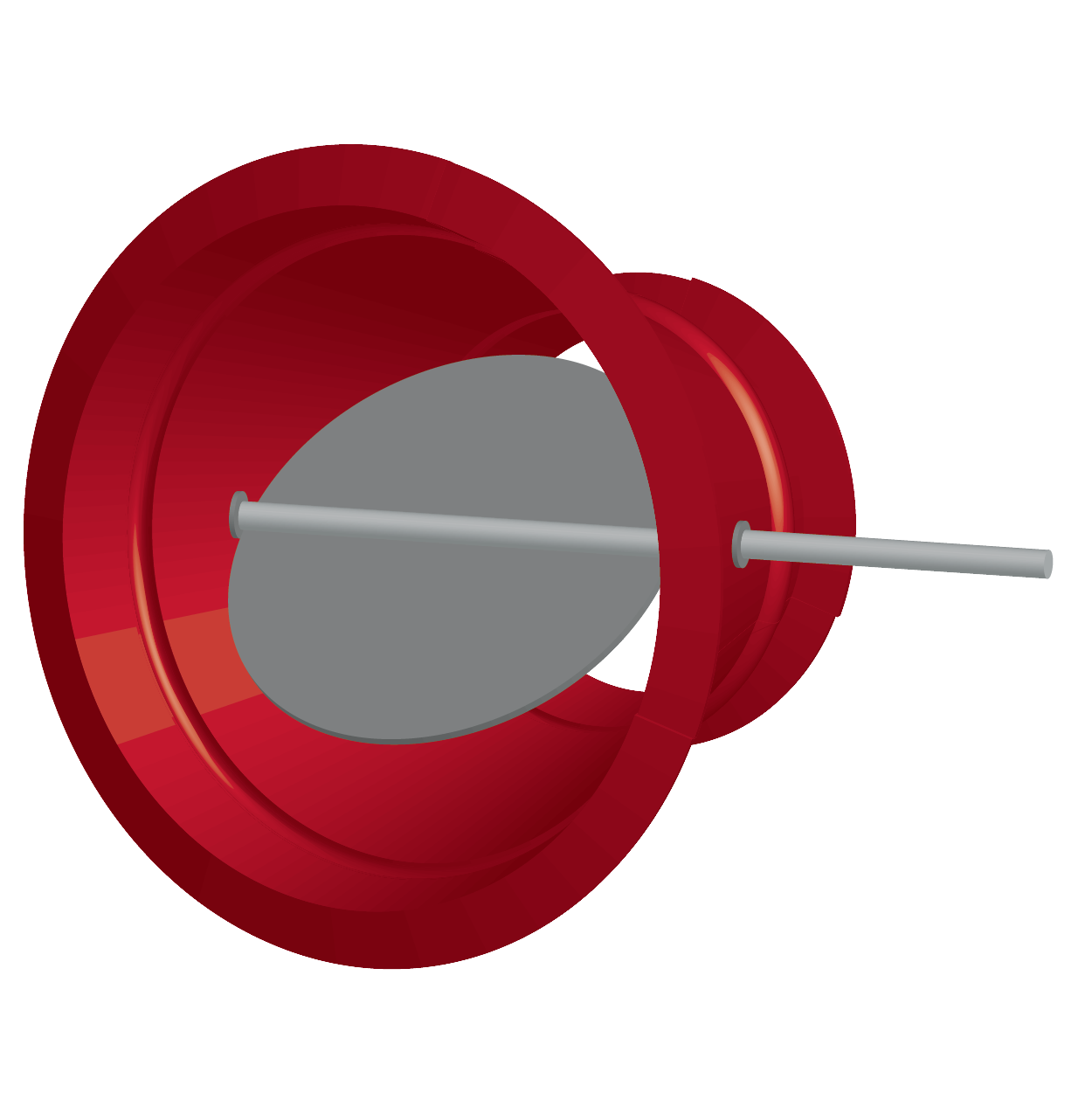

A580-BD

10" Deep Round Industrial Backdraft Damper

A580BD

Maximum Velocity (FPM): 6000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

1 in Group Compare

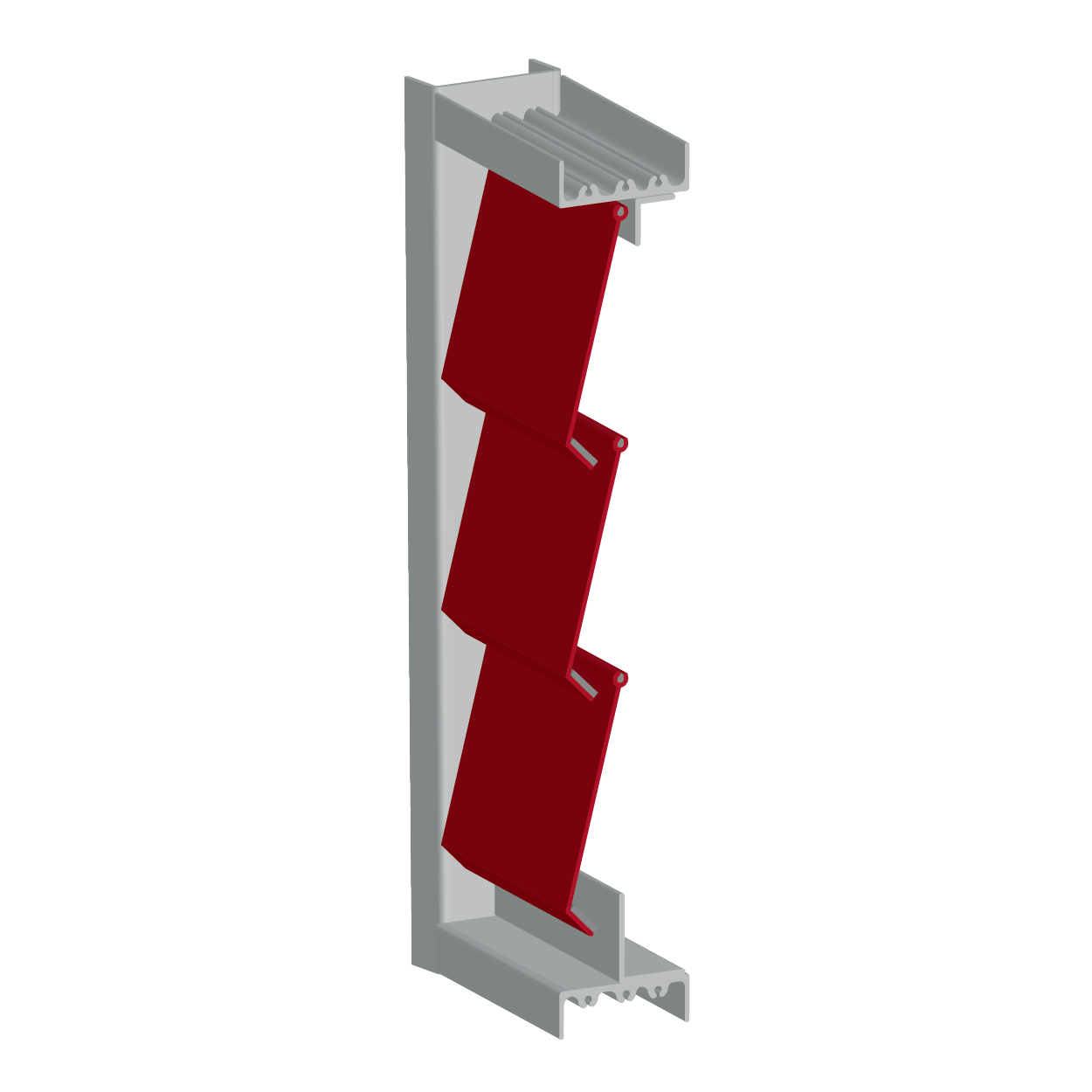

A225-B

2" Deep Light Duty Aluminum Pressure Relief Backdraft Damper

A225B

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

1 in Group Compare

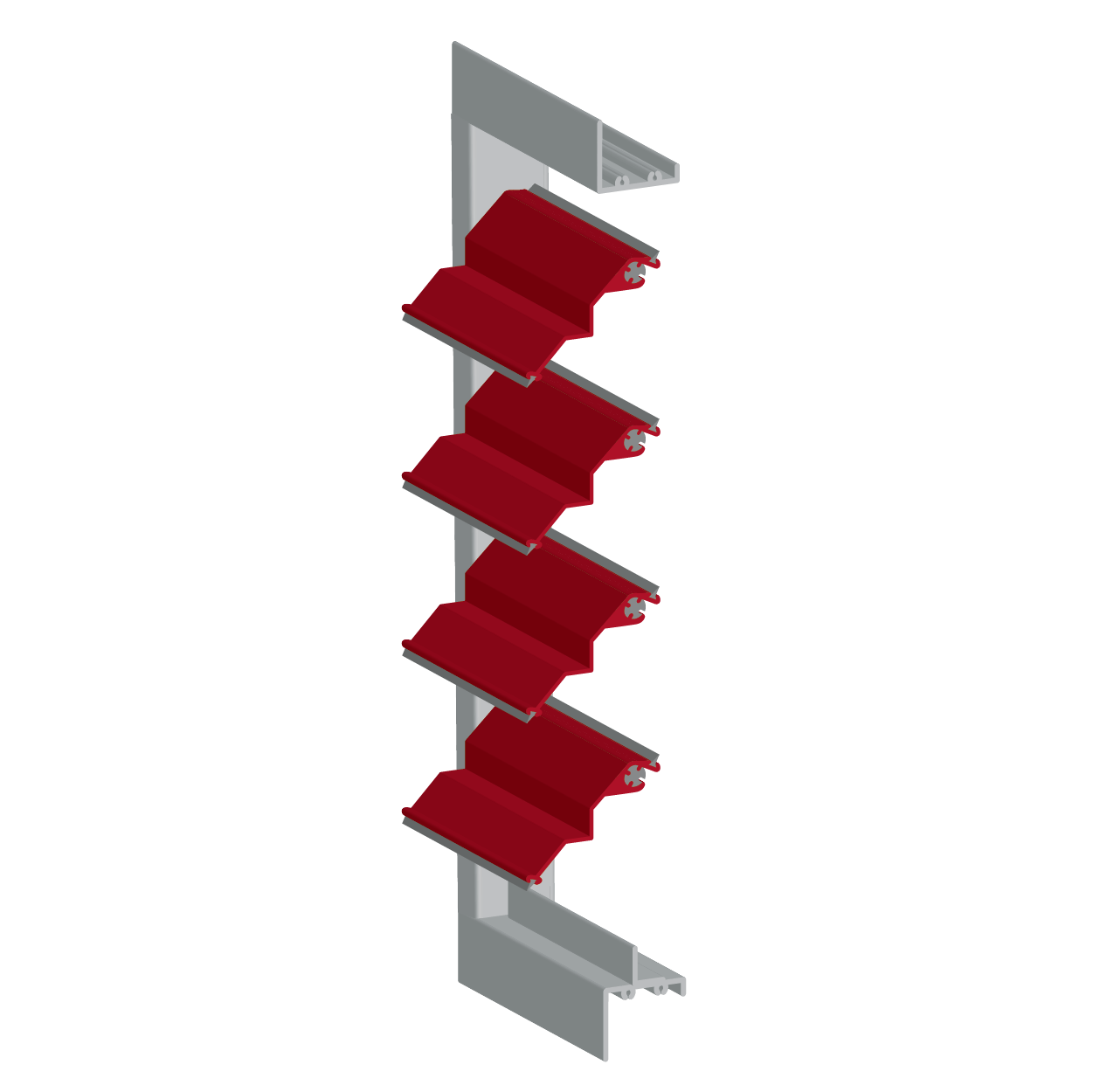

A335

2" Deep Aluminum Backdraft Damper

A335

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .35 in. w.g. @ 1000 fpm

1 in Group Compare

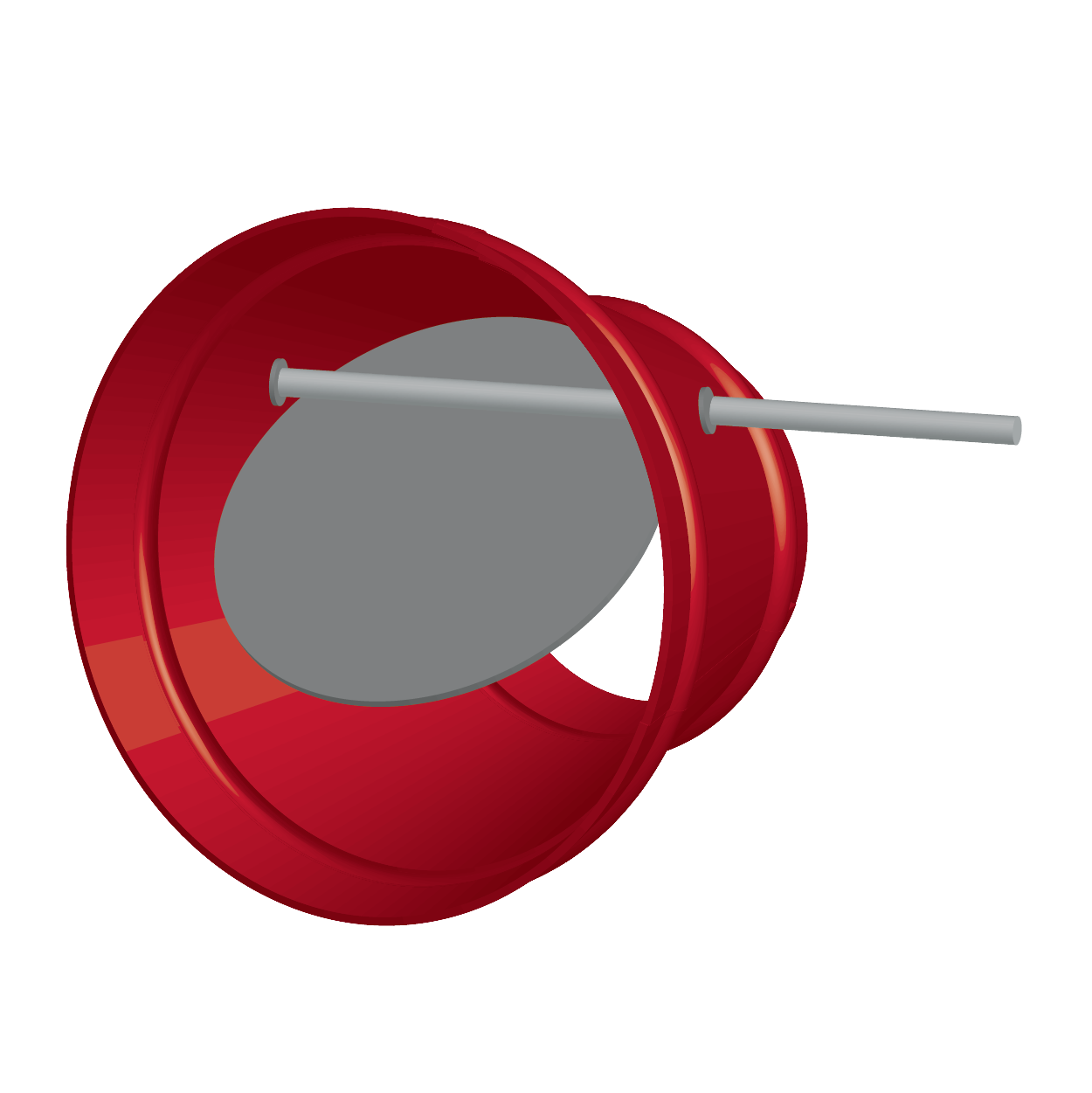

A389

Aluminum Round Backdraft Damper

A389

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

BSL

2" Deep Light Duty Aluminum Pressure Relief Damper

BSL

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

1 in Group Compare

BS55

4" Deep Extruded Aluminum Backdraft Damper

BS55

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

1 in Group Compare

BID8

4" Deep Aluminum Teardrop Blade Backdraft Damper

BID8

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

354

6" to 8" Deep Double Deck Multi-Zone Damper

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

1 in Group Compare

356

10" Deep Triple Deck Multi-Zone Damper

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

1 in Group Compare

356-12

12" Deep Triple Deck Multi-Zone Galvanized Steel Damper

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

1 in Group Compare

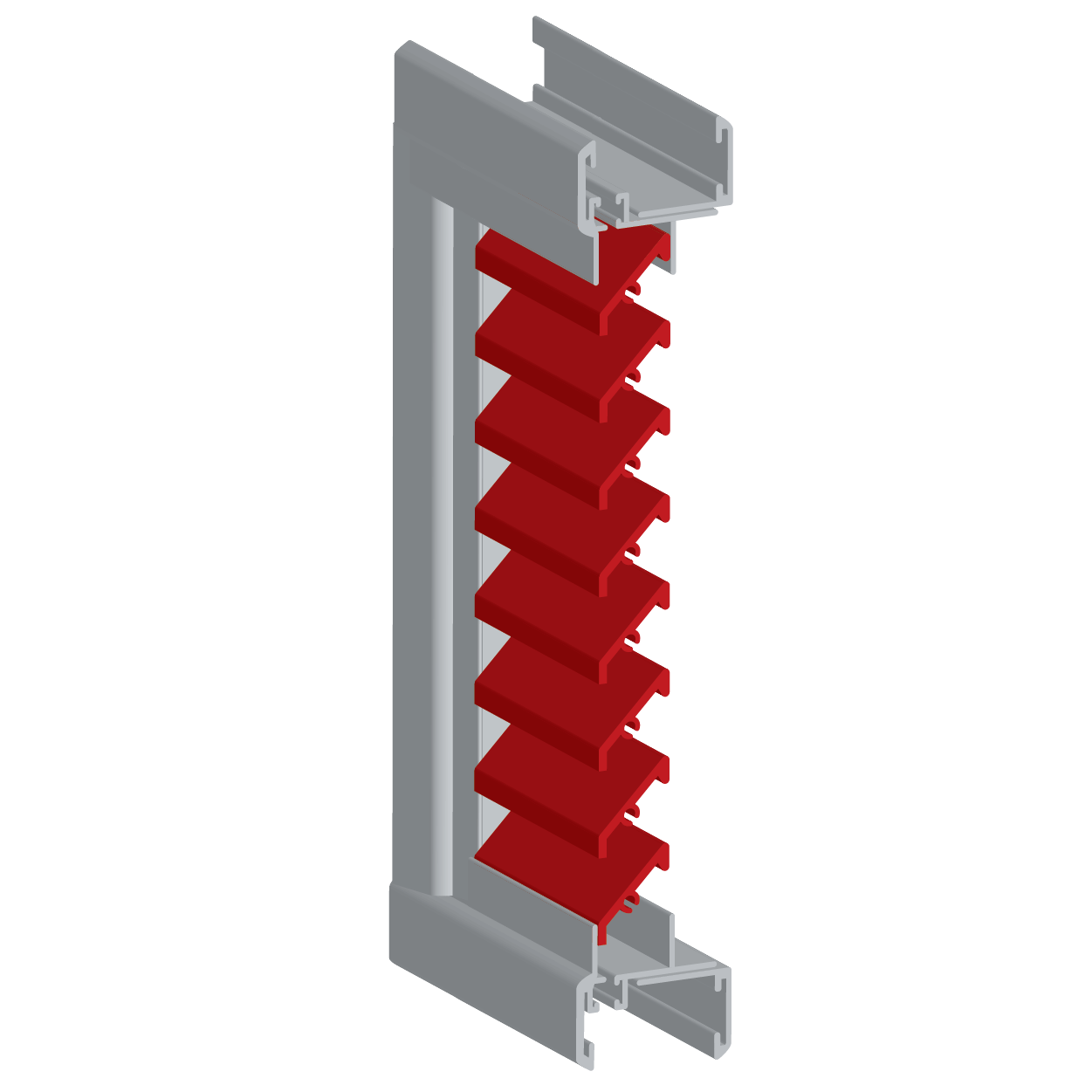

A11F

45° Stationary Blade Flanged Frame Door Louver

A11F

1 in Group Compare

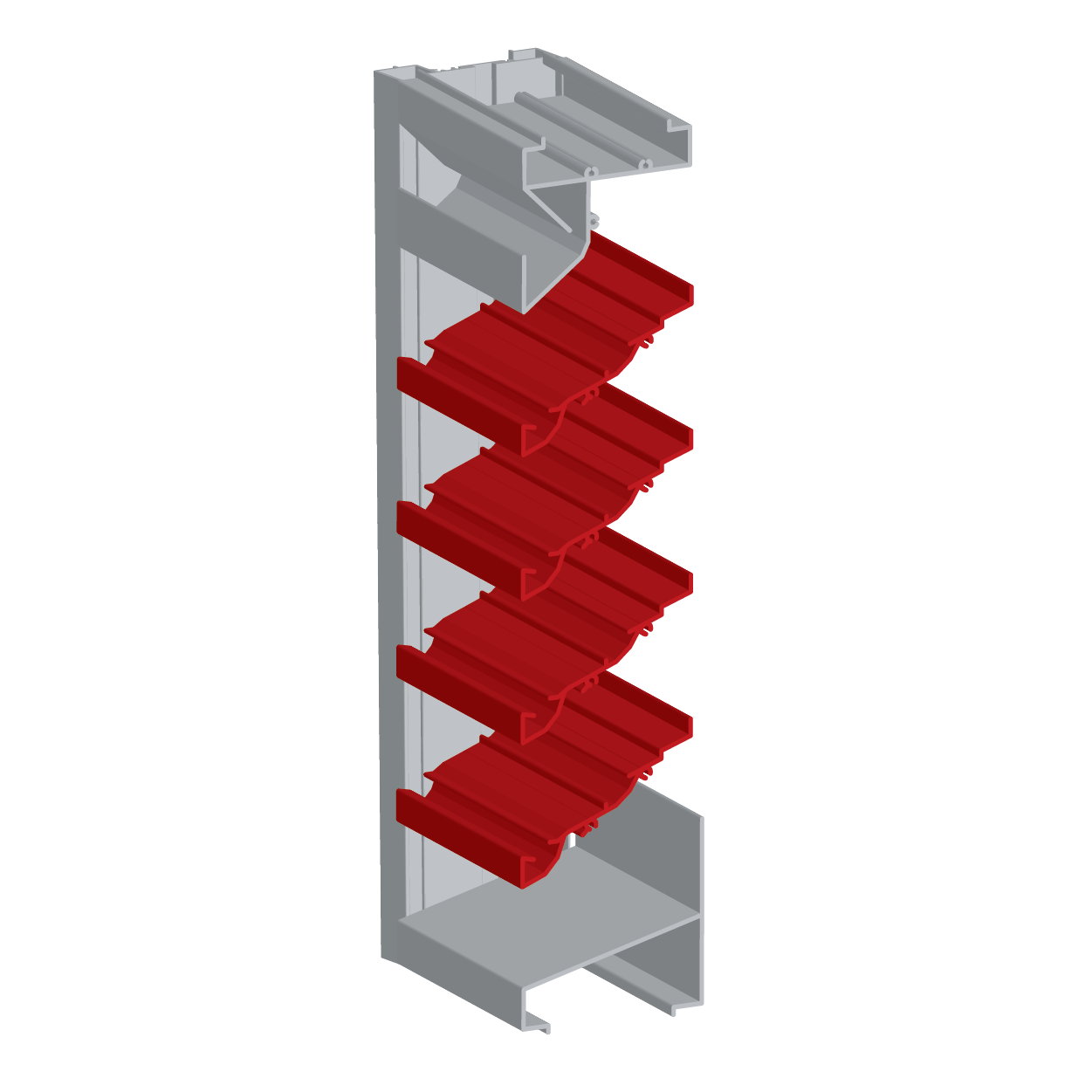

A4DHP

4" Deep Horizontal Extruded Aluminum Drainable Baffle Blade Louver

A4DHP

Free Area %: 61%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 909 (fpm)

1 in Group Compare

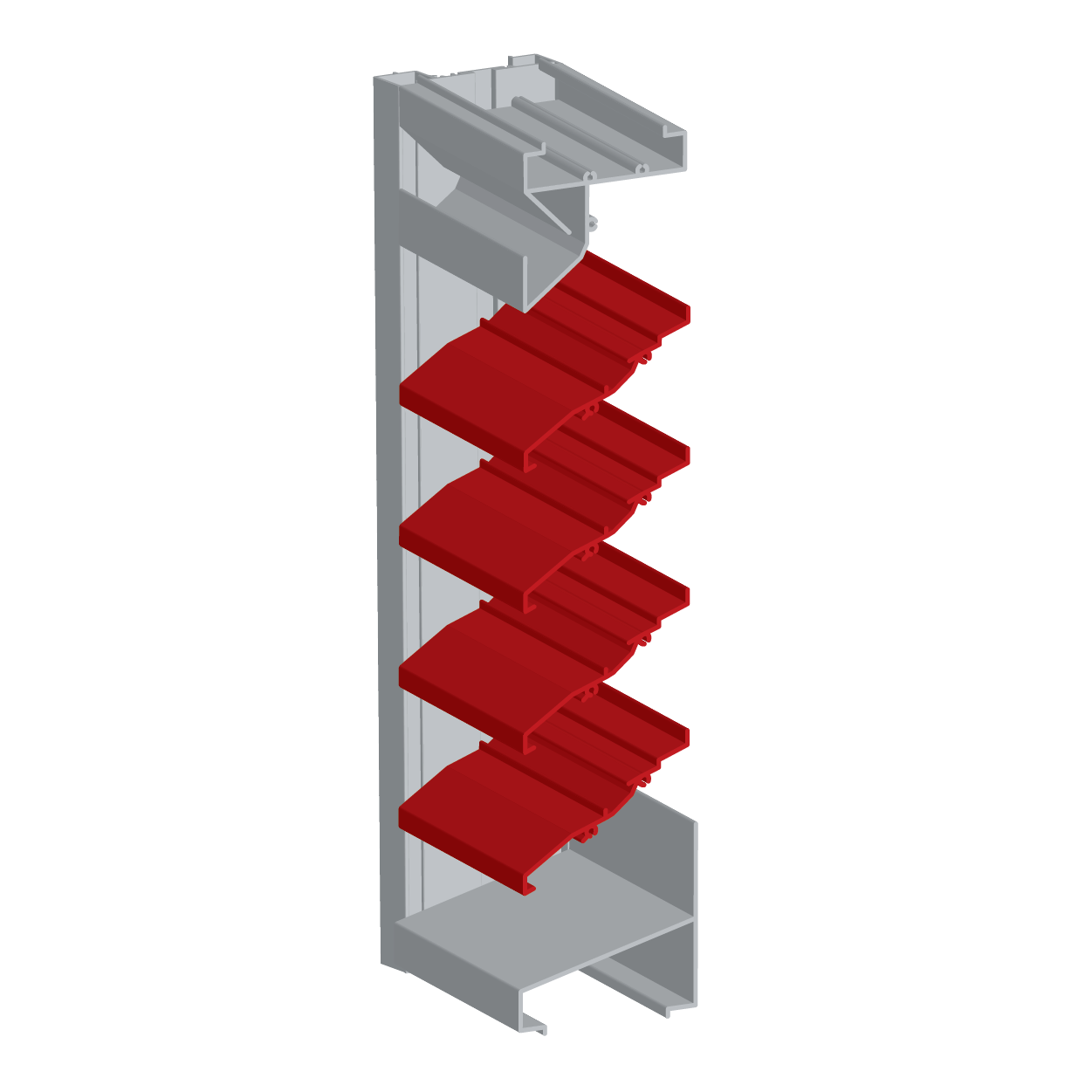

A4SHP

4" Deep Horizontal Extruded Aluminum Baffle Blade Louver

A4SHP

Free Area %: 60%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 990 (fpm)

1 in Group Compare

A455

4" Deep 45° Straight Blade Extruded Aluminum Louver

A455

Free Area %: 57%
Pressure Drop: .14 in. w.g. @ 920 fpm
Water Penetration (fpm): 886 (fpm)

1 in Group Compare

A430

4" Deep 37° Extruded Aluminum Fixed Straight Blade Louver

A430

Free Area %: 57%
Pressure Drop: .11 in. w.g. @ 900 fpm
Water Penetration (fpm): 876 (fpm)

1 in Group Compare

A435

4" Deep 37° Extruded Aluminum Drainable Blade Louver

A435

Free Area %: 57%
Pressure Drop: .12 in. w.g. @ 905 fpm
Water Penetration (fpm): 868 (fpm)

1 in Group Compare

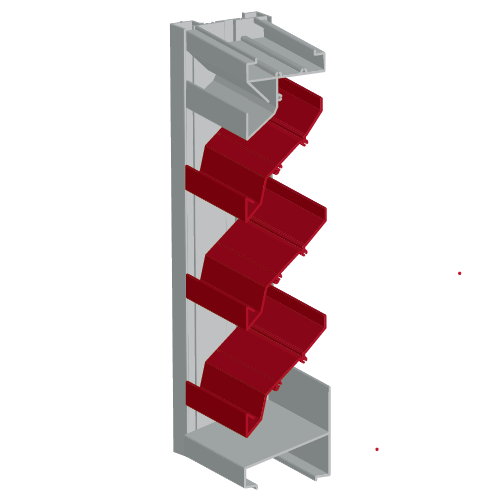

A445

4" Deep 45° Drain Blade Extruded Aluminum Louver

A445

Free Area %: 51%
Pressure Drop: .19 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1021 (fpm)

1 in Group Compare

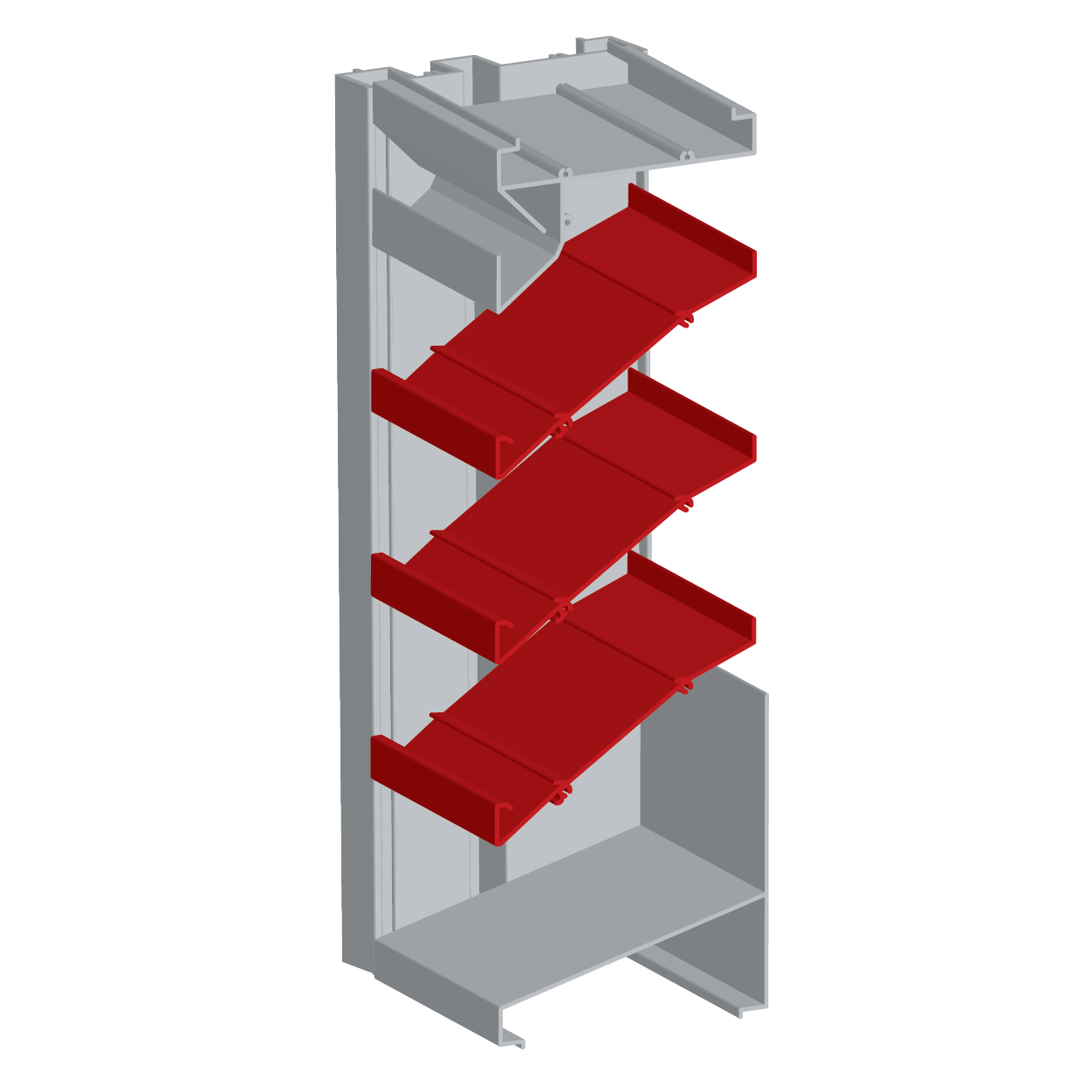

A6DHP

6" Deep Extruded Aluminum Drainable Blade High Performance Louver

A6DHP

Free Area %: 63%
Pressure Drop: .13 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1103 (fpm)

1 in Group Compare

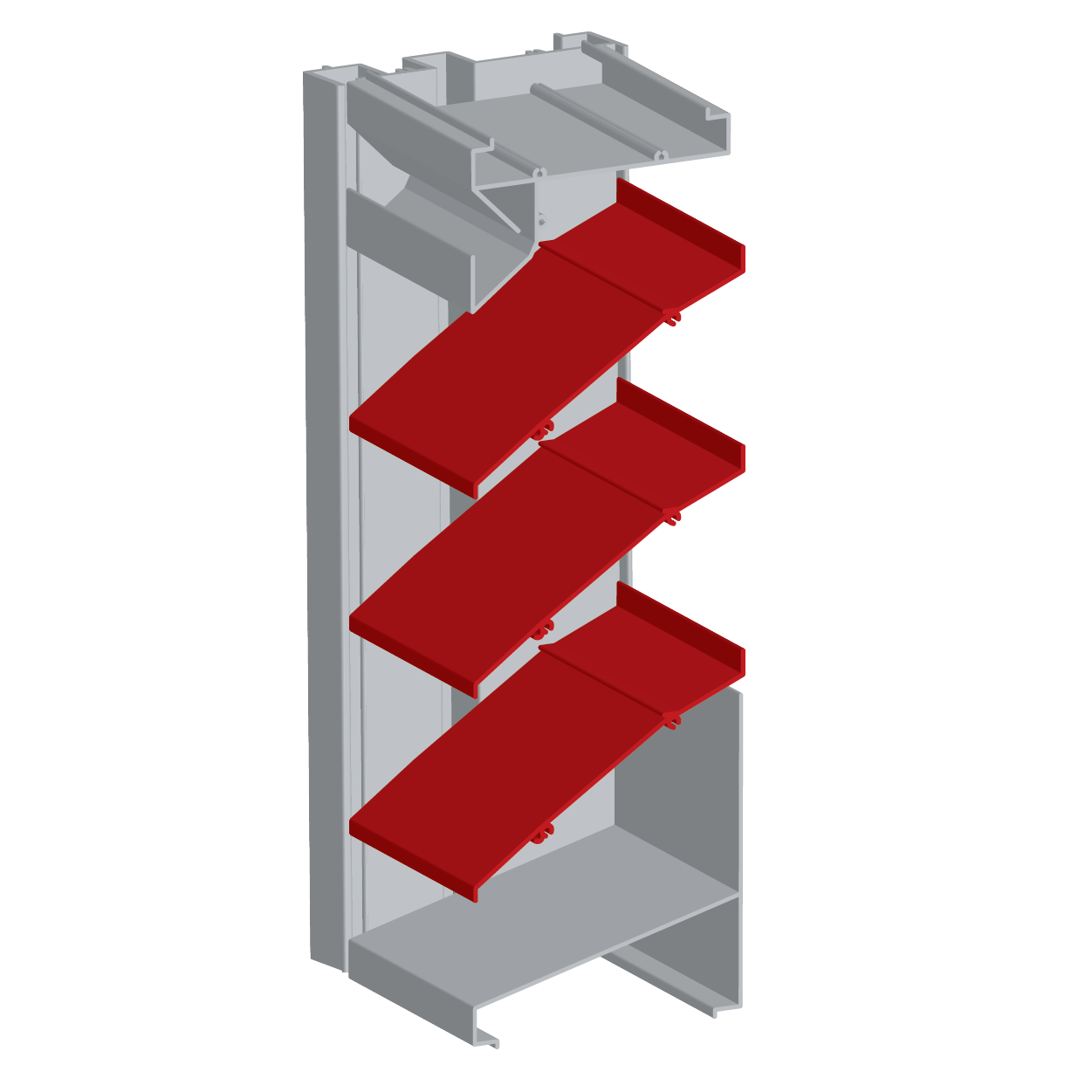

A6SHP

6" Deep Extruded Aluminum Non-Drainable Blade High Performance Louver

A6SHP

Free Area %: 61%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 964 (fpm)

1 in Group Compare

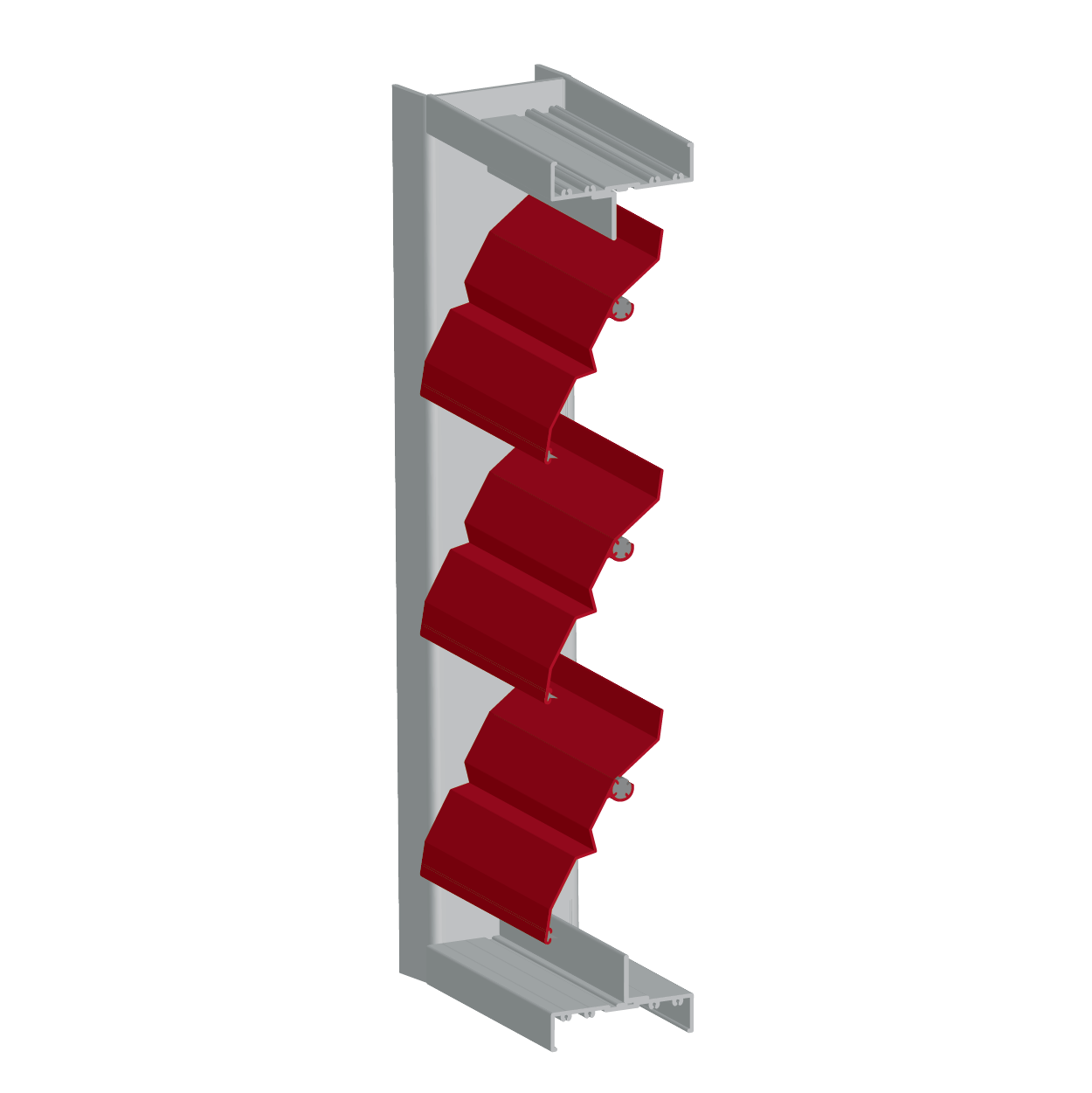

A655

6" Deep 45° Non-Drainable Blade Extruded Aluminum Louver

A655

Free Area %: 55%
Pressure Drop: .16 in. w.g. @ 1100 fpm
Water Penetration (fpm): 1093 (fpm)

1 in Group Compare

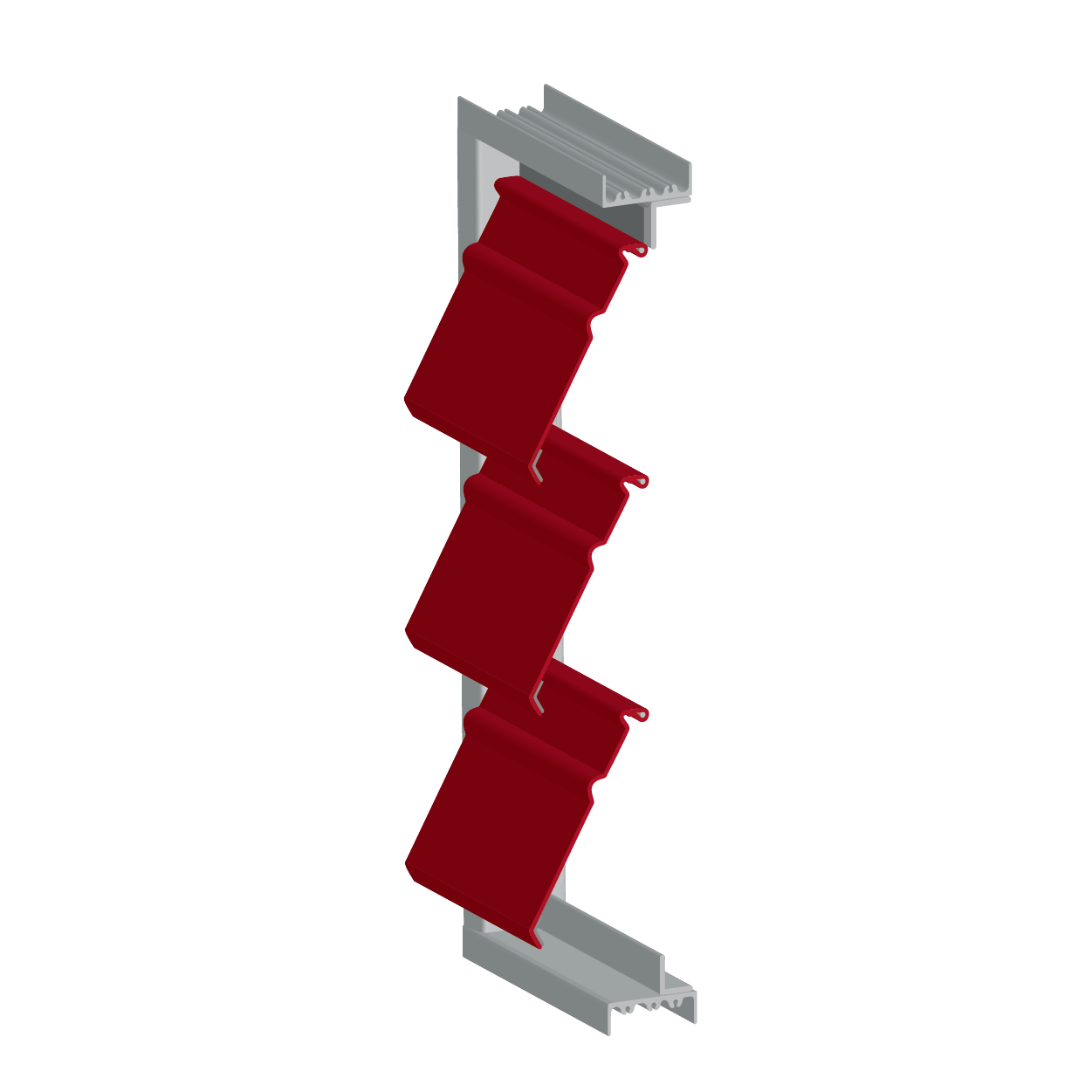

A500

5" Deep Chevron Drainable Blade Louver

A500

Free Area %: 48.3%
Pressure Drop: .208 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1141 (fpm)

1 in Group Compare

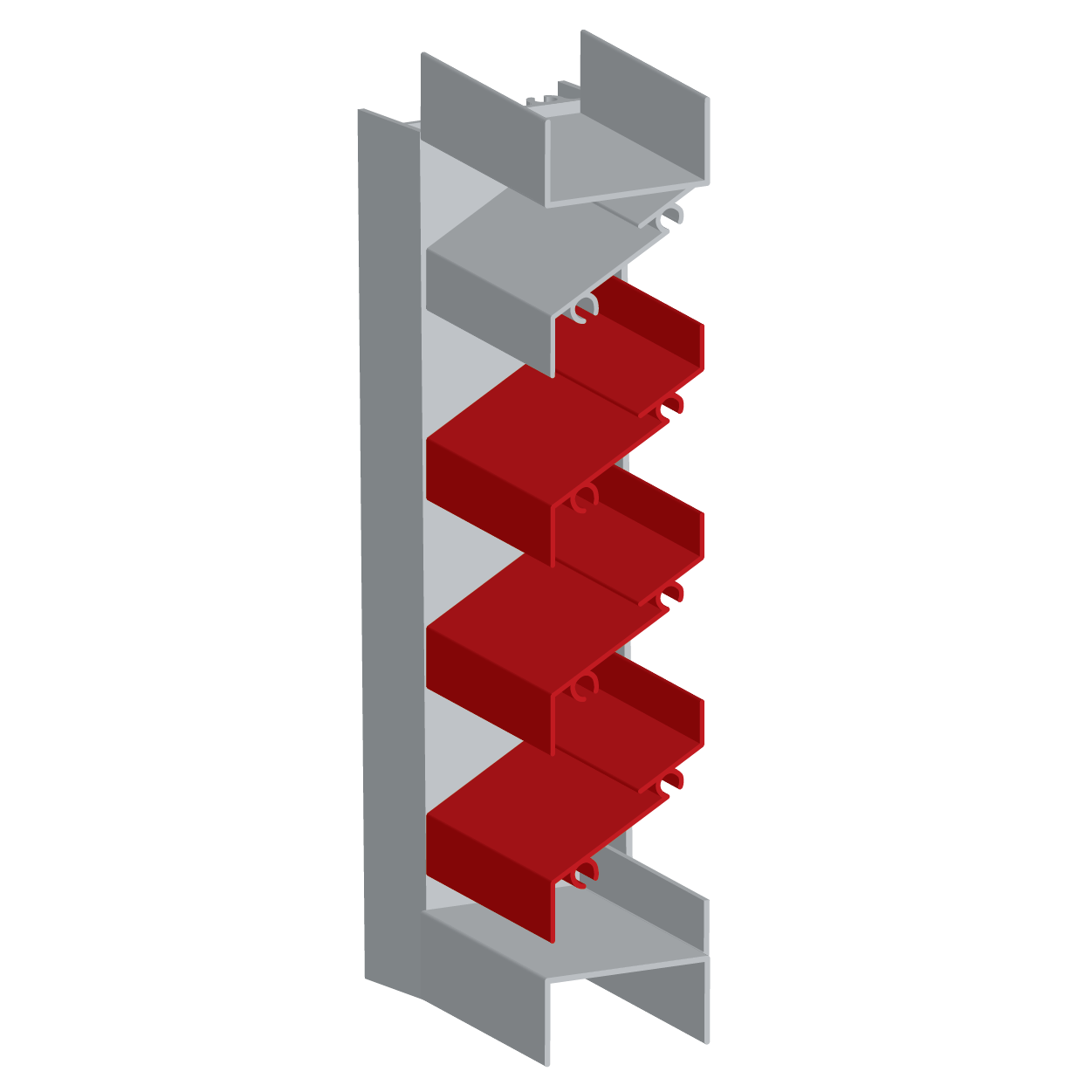

A150

1.5" Deep, 30° Baffle Blade Extruded Aluminum Louver

A150

Free Area %: 46%
Pressure Drop: .034 in. w.g. @ 495 fpm
Water Penetration (fpm): 459 (fpm)

1 in Group Compare

A245

2" Deep, 45° Baffle Blade Extruded Aluminum Curtain Wall Louver

A245

Free Area %: 45%
Pressure Drop: .09 in. w.g. @ 750 fpm
Water Penetration (fpm): 748 (fpm)

1 in Group Compare

A258

2" Deep, 45° Extruded Aluminum Drainable Blade Louver

A258

Free Area %: 45%
Pressure Drop: .12 in. w.g. @ 1000 fpm
Water Penetration (fpm): 901 (fpm)

1 in Group Compare

Page 3 of 10 (318 Results, 239 Groups)
