Page 6 of 10 (318 Results, 239 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

S245

2" Deep 45° Stationary Non-Drainable Blade Steel Louver

S245

1 in Group Compare

S400

4" Deep 45° Stationary Non-Drainable Blade Steel Louver

S400

Free Area %: 51%
Pressure Drop: .08 in. w.g. @ 630 fpm
Water Penetration (fpm): 614 (fpm)

1 in Group Compare

S655

6" Deep 45° Stationary Non-Drainable Blade Steel Louver

S655

Free Area %: 46.3%

1 in Group Compare

S445

4" Deep 45 Degree Stationary Drain Blade Steel Louver

S445

Free Area %: 50%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 987 (fpm)

1 in Group Compare

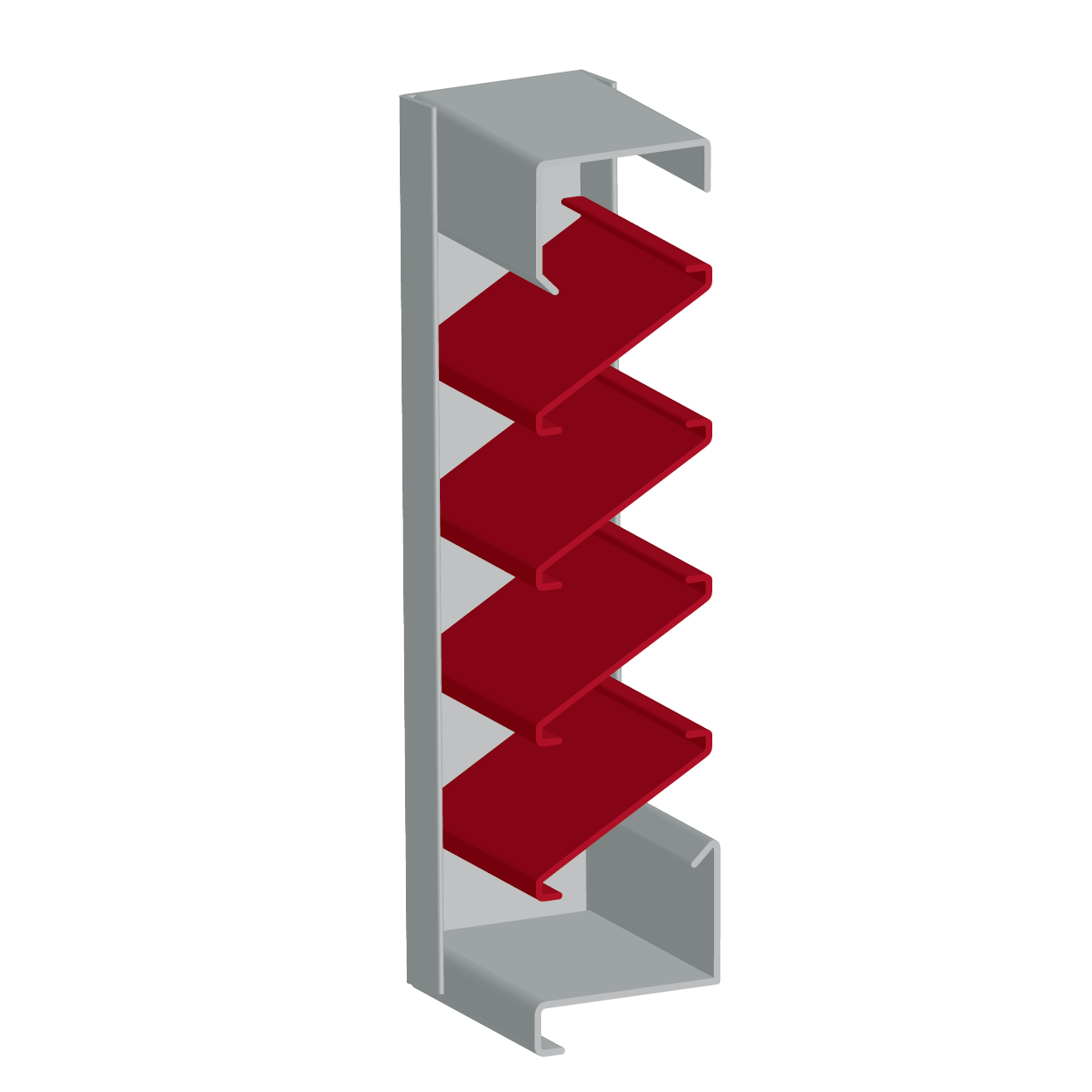

S430

4" Deep 30° Stationary Non-Drainable Blade Steel Louver

S430

1 in Group Compare

S645

6" Deep 45° Stationary Drainable Blade Steel Louver

S645

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 950 fpm
Water Penetration (fpm): 952 (fpm)

1 in Group Compare

S635

6" Deep 35° Stationary Drainable Blade Steel Louver

S635

Free Area %: 55%
Pressure Drop: .13 in. w.g. @ 950 fpm
Water Penetration (fpm): 1096 (fpm)

1 in Group Compare

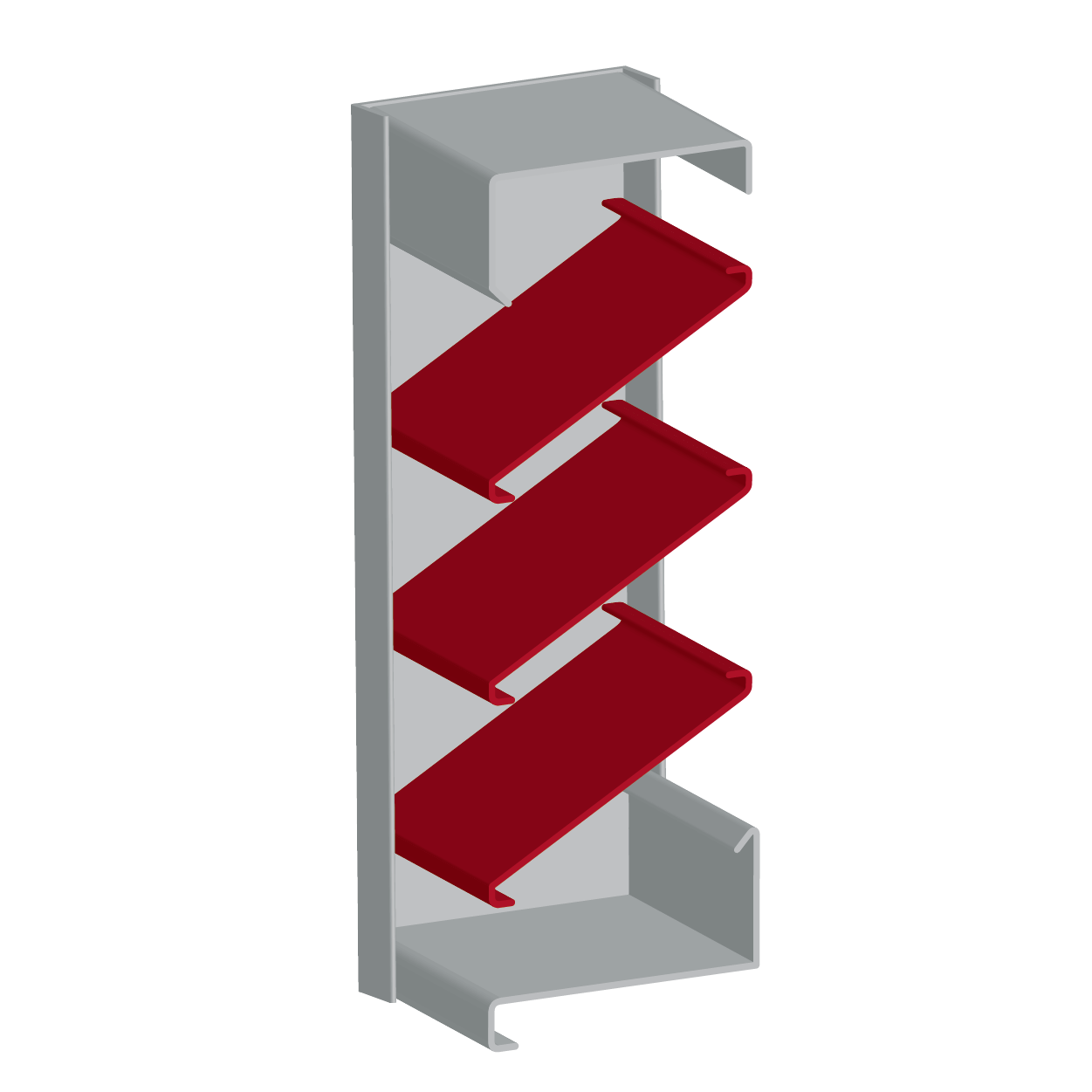

S630

6" Deep 30° Stationary Non-Drainable Blade Steel Louver

S630

1 in Group Compare

S480

4" Deep Stationary Inverted V Blade Steel Louver

S480

1 in Group Compare

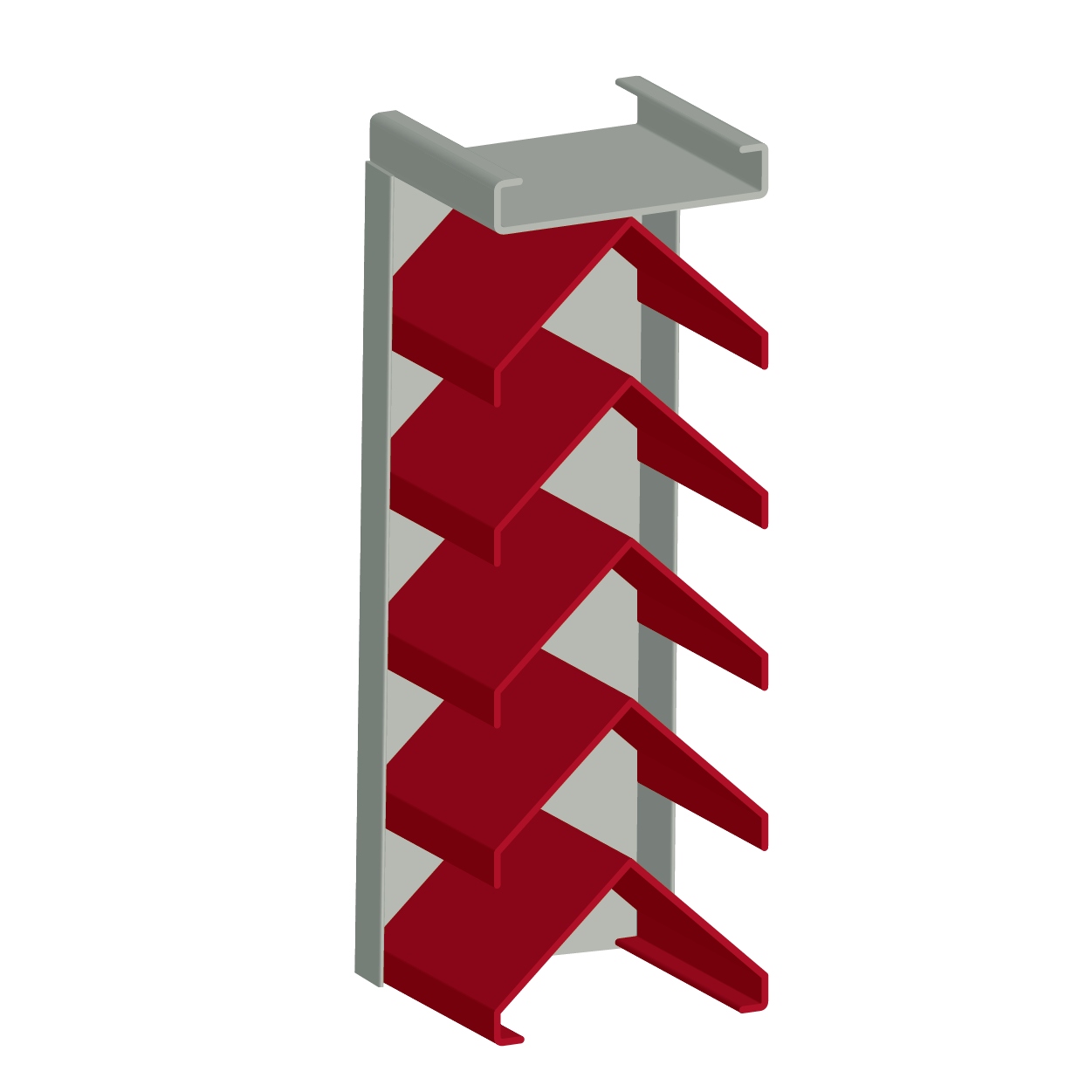

AFS609

6" Deep Stationary Inverted "V" Blade Steel Louver

AFS609

1 in Group Compare

S405

4" Deep 45° Stationary Baffle Blade Steel Louver

S405

Free Area %: 51.6%
Pressure Drop: .07 in. w.g. @ 650 fpm
Water Penetration (fpm): 643 (fpm)

1 in Group Compare

S605

6" Deep 45° Stationary Baffle Blade Steel Louver

S605

Free Area %: 45.81%

1 in Group Compare

A455IE

4" Deep Automatic Combination Louver - Intake or Discharge

A455IE

1 in Group Compare

A455A

4" Deep Non-Drainable Pin-Lock Blade Adjustable Louver

A455A, A444M

Free Area %: 43%
Pressure Drop: .16 in. w.g. @ 1000 fpm
Water Penetration (fpm): 1044 (fpm)

2 in Group Compare

A488A

6" Deep Non-Drainable Pin-Lock Blade Adjustable Louver

A488A, A44470M

Free Area %: 67%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 681 (fpm)

2 in Group Compare

A454C

4" Deep Drainable Combination Adjustable and Stationary Louver

A454C, A454CM

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 994 fpm
Water Penetration (fpm): 994 (fpm)

2 in Group Compare

A665C

6" Deep 35° Fixed Drainable Front Blade and Adjustable Back Blade Louver

A665C, A680DC, A665CM

Free Area %: 52%
Pressure Drop: .11 in. w.g. @ 1029 fpm
Water Penetration (fpm): 1029 (fpm)

3 in Group Compare

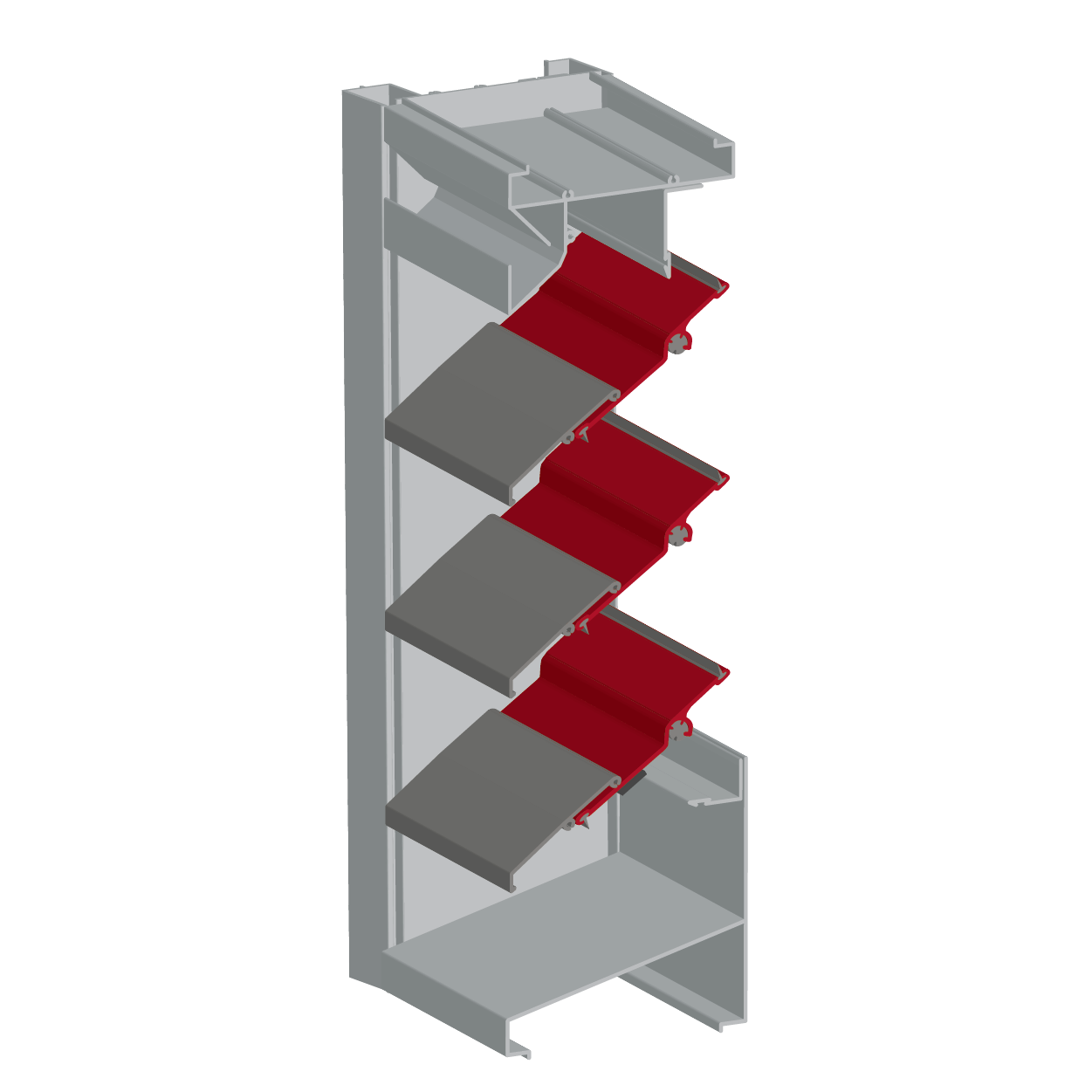

A681C

6" Deep 35° Fixed Blade and Adjustable Blade Combination Louver

A681C, A681CM, A681CC

Free Area %: 52%
Pressure Drop: .145 in. w.g. @ 981 fpm
Water Penetration (fpm): 981 (fpm)

3 in Group Compare

S645A

6" Deep Drainable Blade Adjustable Steel Louver

S645A

Free Area %: 53.13%
Pressure Drop: .18 in. w.g. @ 1200 fpm
Water Penetration (fpm): 859 (fpm)

1 in Group Compare

S455A

4" Deep Formed Steel Adjustable Louver

S455A

Free Area %: 48.68%
Pressure Drop: .1 in. w.g. @ 720 fpm
Water Penetration (fpm): 645 (fpm)

1 in Group Compare

S445A

4" Deep 45° Blade Adjustable Steel Louver

S445A

Free Area %: 44%
Pressure Drop: .16 in. w.g. @ 1050 fpm
Water Penetration (fpm): 1002 (fpm)

1 in Group Compare

A635AF

6" Deep 35° Drain Blade and Adjustable Airfoil Blade Louver

A635AF, A680DAFC, A635AFM

Free Area %: 52%
Pressure Drop: .14 in. w.g. @ 1026 fpm
Water Penetration (fpm): 1029 (fpm)

3 in Group Compare

A445A

4" Deep Drainable Blade Adjustable Louver

A445A, A445AM

Free Area %: 44%
Pressure Drop: .14 in. w.g. @ 1000 fpm
Water Penetration (fpm): 974 (fpm)

2 in Group Compare

A655A

6" Deep Non-Drainable Blade Adjustable Louver

A655A, A655AM

Free Area %: 57%
Pressure Drop: .15 in. w.g. @ 1000 fpm
Water Penetration (fpm): 841 (fpm)

Some Items Currently Unavaliable

2 in Group Compare
