Page 7 of 10 (319 Results, 239 Groups)

12 Per Page 24 Per Page 60 Per Page 120 Per Page

BID8

4" Deep Aluminum Teardrop Blade Backdraft Damper

BID8

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

More Info

BID9

10" Deep Aluminum Teardrop Blade Backdraft Damper

BID9

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

1 in Group Compare

More Info

BS55

4" Deep Extruded Aluminum Backdraft Damper

BS55

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

1 in Group Compare

More Info

BS66

4' Deep Galvanized Steel Backdraft Damper - Intake or Discharge

BS66

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

1 in Group Compare

More Info

BSL

2" Deep Light Duty Aluminum Pressure Relief Damper

BSL

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

1 in Group Compare

More Info

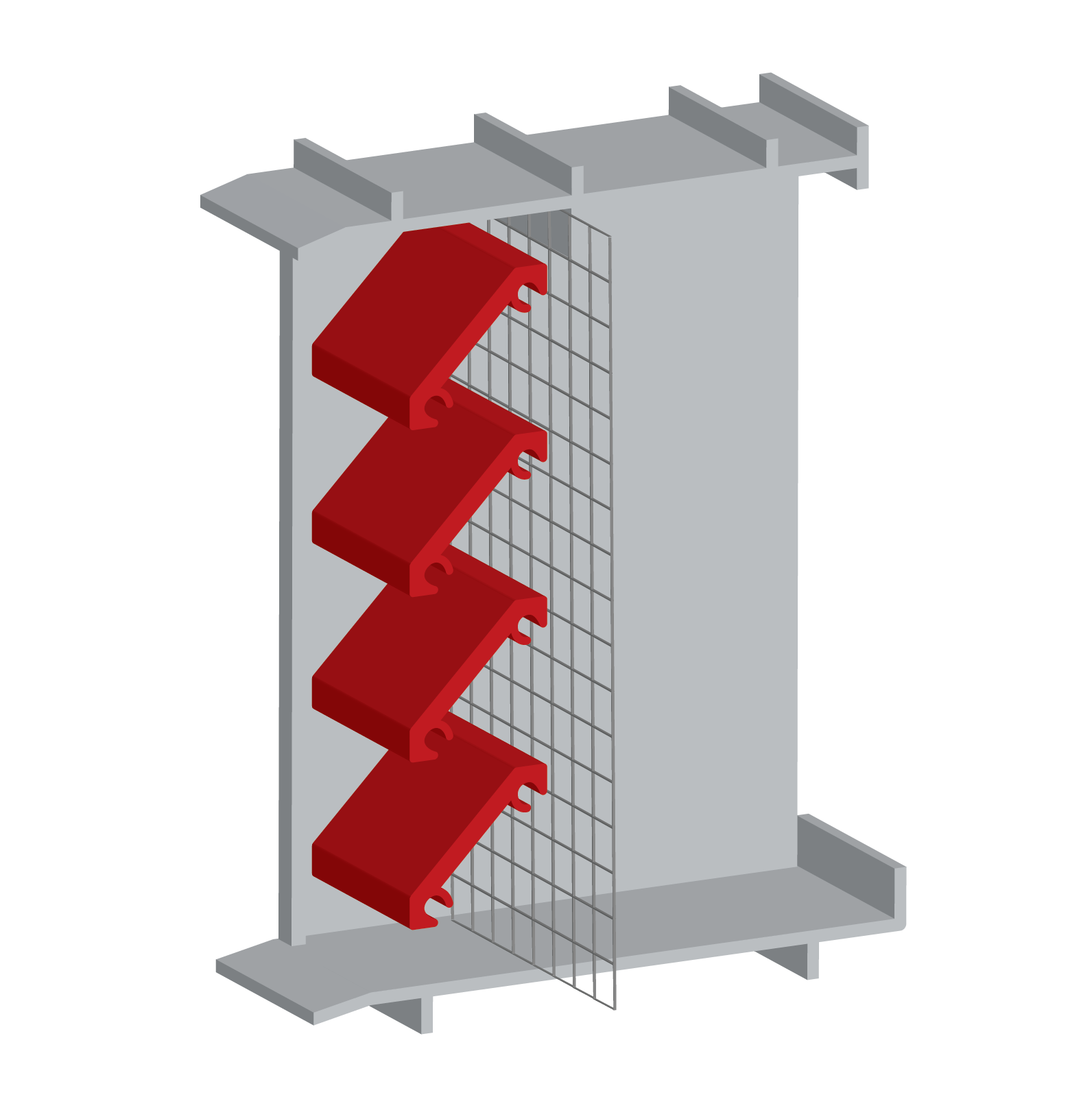

BV

Brick Vents with Standard Frames

1 in Group Compare

More Info

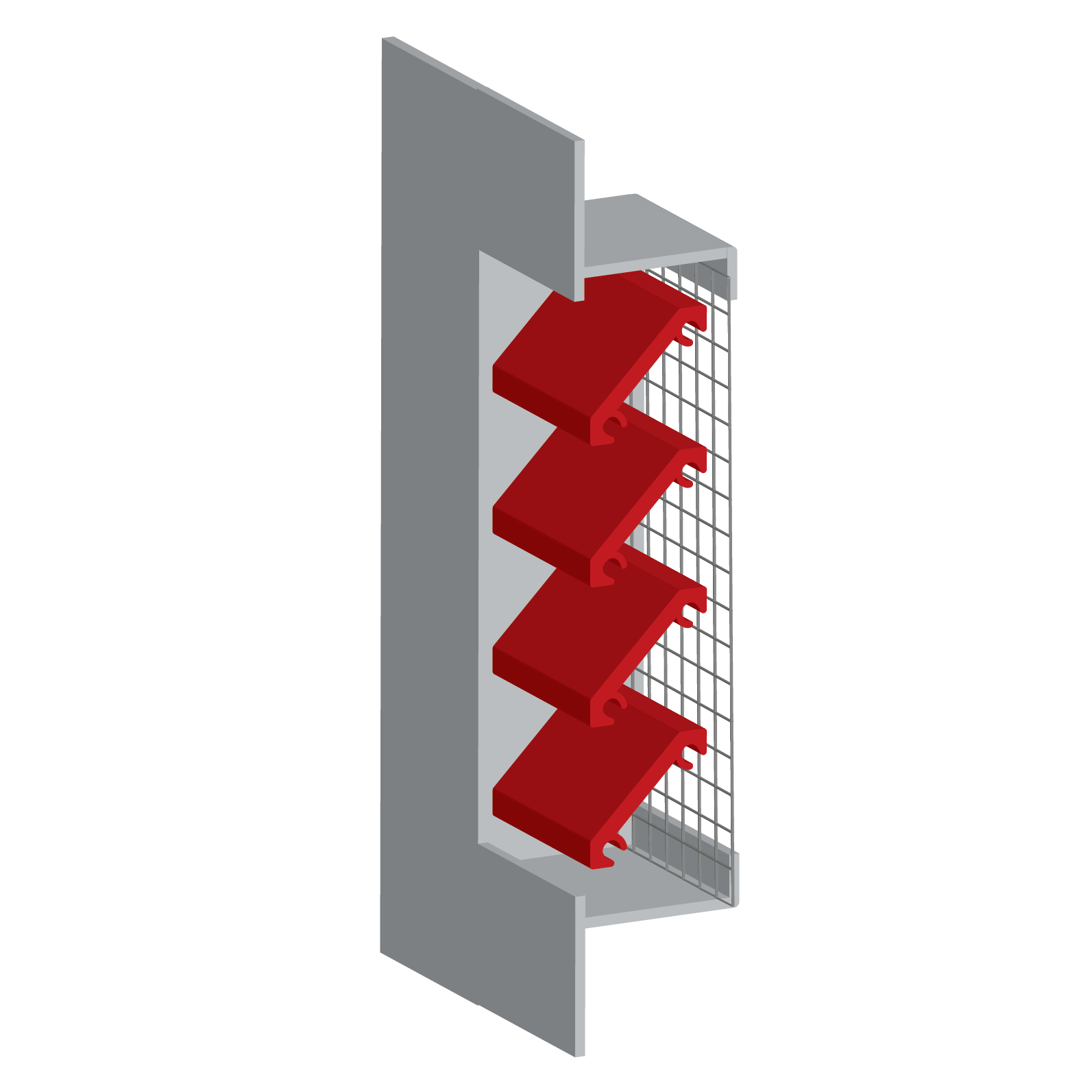

BV-F

Brick Vents with Flanged Frames

BVF

1 in Group Compare

More Info

D19F

1.5 Hour Rated Dynamic Curtain Blade Thin Line Fire Damper

D19FV

Maximum Velocity (FPM): 2000 fpm

1 in Group Compare

More Info

D19X

1.5 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D19XAH, D19XAV, D19XBH, D19XBV, D19XCH, D19XCV

Maximum Velocity (FPM): 2000 fpm

3 in Group Compare

More Info

D39X

3 Hour Rated Curtain Blade Dynamic Fire Damper w/ Integrated Sleeve

D39XAH, D39XAV, D39XBH, D39XBV, D39XCH, D39XCV

Maximum Velocity (FPM): 2000 fpm

3 in Group Compare

More Info

FA1

Class I, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

FA1H25034, FA1H35034, FA1V25034, FA1V35034, FA1H25044, FA1H35044, FA1V25044, FA1V35044, FA1H25046, FA1H35046, FA1V25046, FA1V35046, FA1H250, FA1H350, FA1V250

Maximum Velocity (FPM): 3000 fpm

4 in Group Compare

More Info

FA1GF

Class I, 1.5 Hour Front Access Grille Airfoil Blade Combination Fire-Smoke Damper

FA1HE250, FA1HE350, FA1VG250, FA1VG350, FA1HD250, FA1HD350, FA1VF250, FA1VF350

Maximum Velocity (FPM): 4000 fpm

2 in Group Compare

More Info

FA2

Class II, 1.5 Hour Airfoil Blade Combination Fire-Smoke Damper

FA2H25046, FA2H35046, FA2V25046, FA2V35046, FA2H25044, FA2H35044, FA2V25044, FA2V35044, FA2H25034, FA2H35034, FA2V25034, FA2V35034, FA2H250, FA2H350, FA2V250, FA2V350
